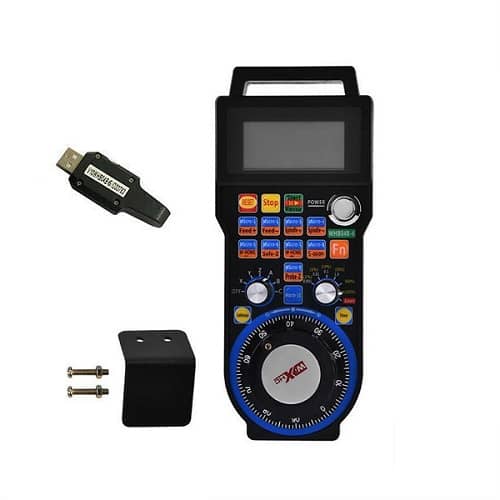

Wireless electronic MPG handwheel for Mach3 Controller,6 Axis ( X, Y, Z, A, B, C)

Description:

- Wireless USB MACH3 MPG 433MHZ Electronic Handwheel 6Axis CNC Mach3 hand wheel for CNC Router Machine

- Applied to a variety of CNC systems, suitable for the use of the industry are: engraving machine industry, engraving and milling machine industry, CNC lathe industry, laser cutting machine industry, flame cutting machine industry, plasma cutting machine industry, automation production control industry

- Radiofrequency: 433 MHz, ISM, the Tx power is 10DB and the RX sensitivity is 98DB

- USB receiver 6 axes (X, Y, Z, A, B, C axis) with LCD display real-time display

- Support 128*64 dot matrix input

- Support 100PPR electronic handwheel function.

- Support the 13 shortcut keys, the user is free to define the function

- Wireless transmission distance of 40 meters

- 64 channel frequency hopping transmission, strong anti-interference, stable and reliable; the channel gap is 1 MHz

- LCD Display: spindle speed value, processing feed rate value

Installation:

First, you must install mach3 and then insert the handle's USB drive. Then install the batteries to handle's call box. (Batteries are NOT included in the package)

1. You should copy the ShuttlePro.dll to Mach3plugins directory.

2. M930.m1s is the probez file. You should copy it to the Mach3macrosMach3Mill directory

3. M999.m1s is the ref all home file. You should copy it to the Mach3macrosMach3Mill directory

4. M933 is going to zero work macro. You should copy it to the Mach3macrosMach3Mill directory

5. You could change the macro file M930.m1s, M990.m1s, m933 to satisfy your CNC system

Warning:

When you are using lhb04b, please note that:

when pressing the fn key and another key, please release the fn key first. don't release the fn key and the other key at the same time!!!
