UCCNC Configuration for MPG on C76 or C94

Used software:

UCCNC Version 1.2115 http://www.cncdrive.com/UCCNC/setup_1.2115

Used Plugin:

  https://cnc4pc2.s3.us-east-2.amazonaws.com/files/CNC4PC_Pendant_V2.0.0.0.zip


STEP 1:
Wiring sample:

https://www.cnc4pc.com/pub/media/productattachments/files/WS_55_2.pdf

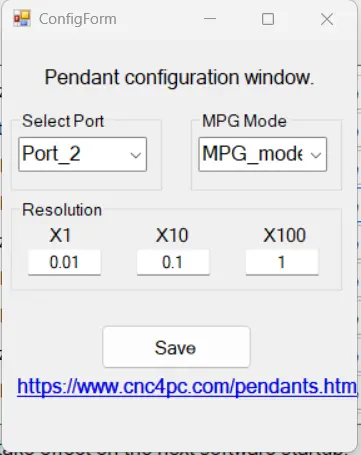

STEP 2: Configure plugin:



CONT. On Continuous Mode the motor moves while the handwheel turns. Excess pulses will be dropped.

SINGLE The motor will rotate moving the number on each encoder tick the number of units that you set. The next movement happens after the motion is finished.

MULTI It will move the motor continually the total distance for the number of pulses sent with the encoder for the distance per pulse that you set.


Testing and Troubleshooting Considerations:
