📄 User's Manual C34LSHB Rev.2





          C34LSHB - Connector board for Leadshine HBS86D and HSS86  Hybrid Servo Stepper Driver Rev. 2



                                                                                               JUNE, 2025

Table of Contents







1.0         OVERVIEW



This board interface is used for the connection between C76, C82, C86ACORN, C86MASSO, C35S, and HBS86D Driver.



2.0         FEATURES



  • Two RJ45 Connectors for The Signals and Encoder.
  • Jumper Terminal for Soft Enable or Hard Enable.
  • This board connects directly to the driver.

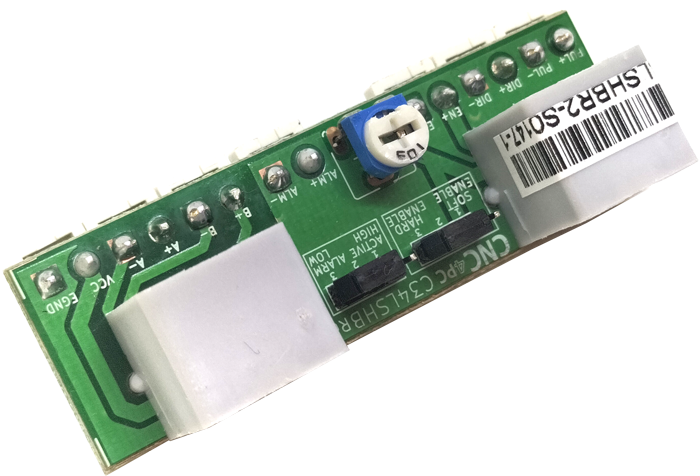

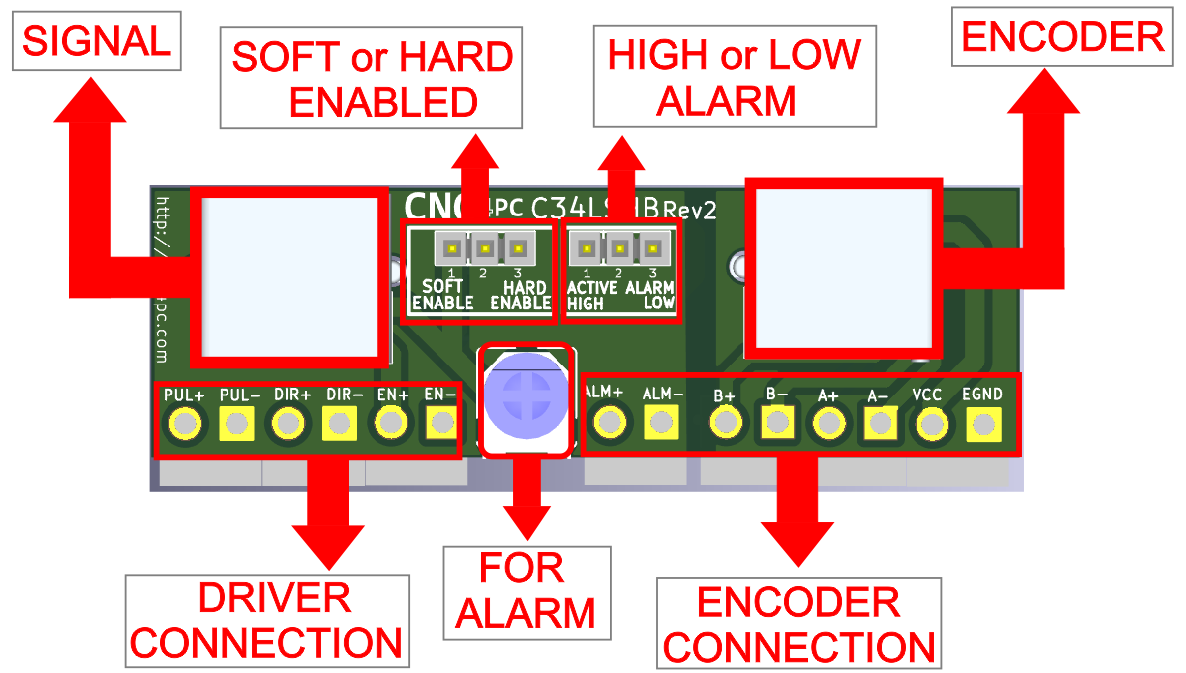

3.0         BOARD DESCRIPTION







4.0        JUMPER TO SELECT THE ENABLE

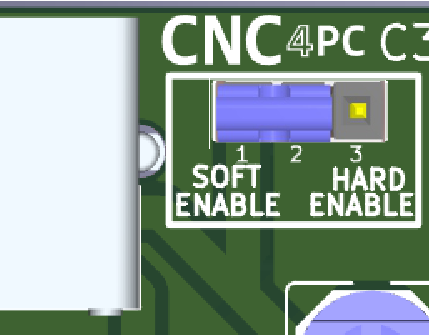

Use Software Enable to keep the driver active only while the system is active.
A set of jumpers as shown in the image.

                                                                                    SOFT ENABLE


Use Hardware Enable to keep the driver enabled at all times.
A set of jumpers as shown in the image.

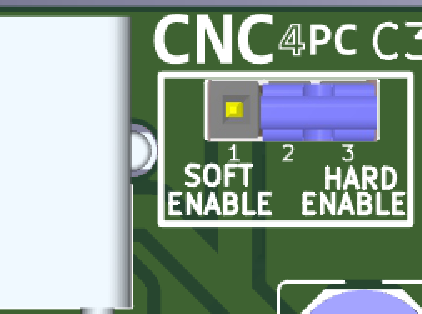

                                                                                    HARD ENABLE






JUMPER TO SELECT ACTIVE LOW AND ACTIVE HIGH

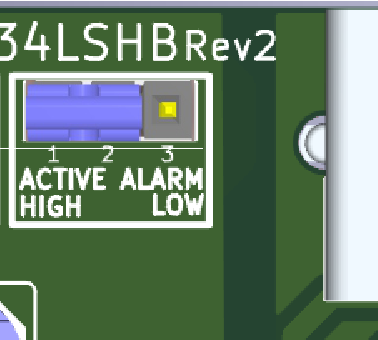

                                                                                    1-2: ACTIVE LOW

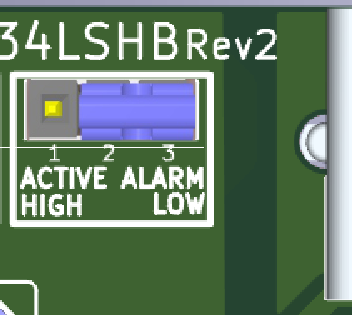

                                                                                         2-3: ACTIVE HIGH

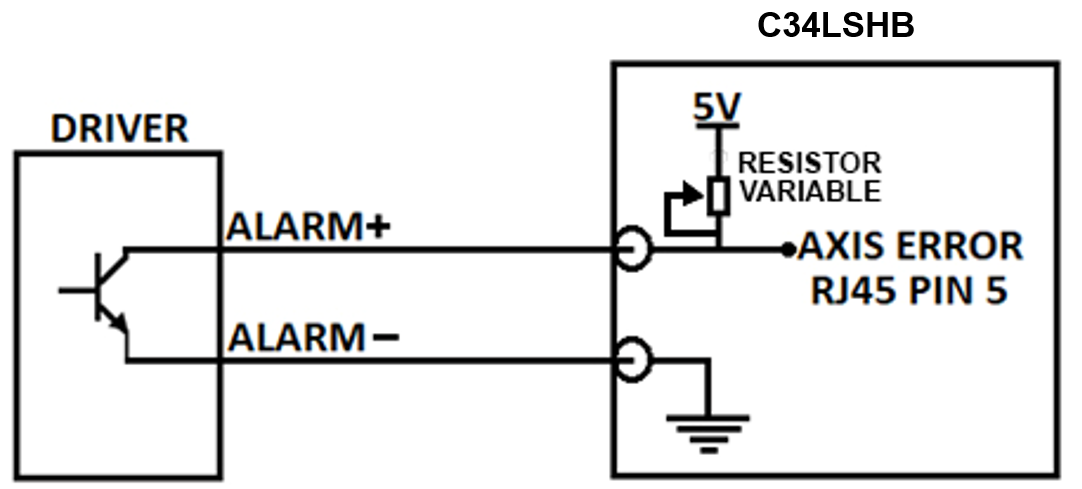

5.0         ALARM


6.0         PINOUT


RJ45

FUNCTION

1

EGND

2

VCC

3

NC

4

NC

5

A-

6

A+

7

B-

8

B+

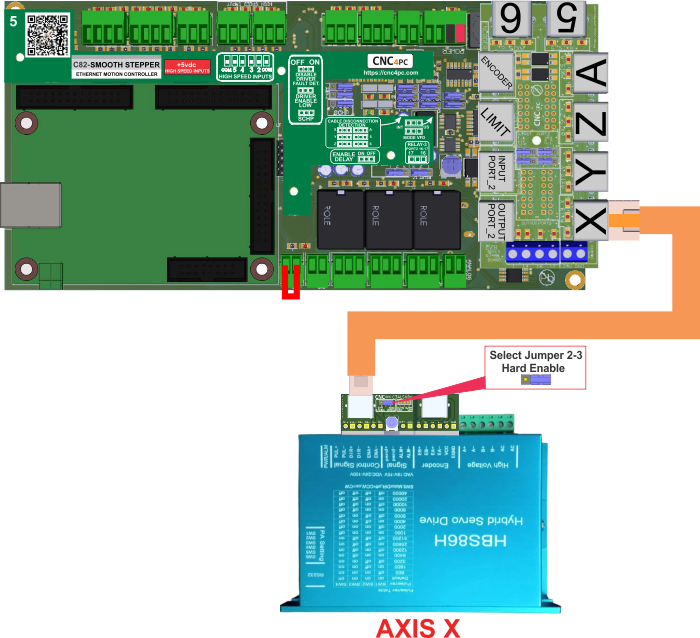

7.0         WIRING SAMPLE

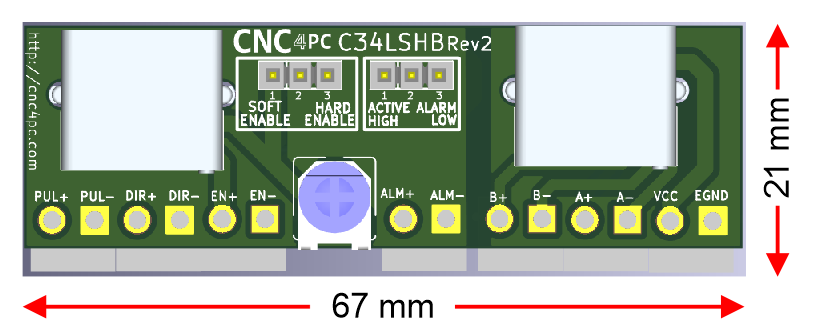

8.0        DIMENSIONS





💡

DISCLAIMER

Use caution. CNC machines can be dangerous. Neither CNC4pc nor Arturo Duncan is liable for any accidents resulting from the improper use of these devices.  This product is not a fail-safe device, and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury, or loss of life.
