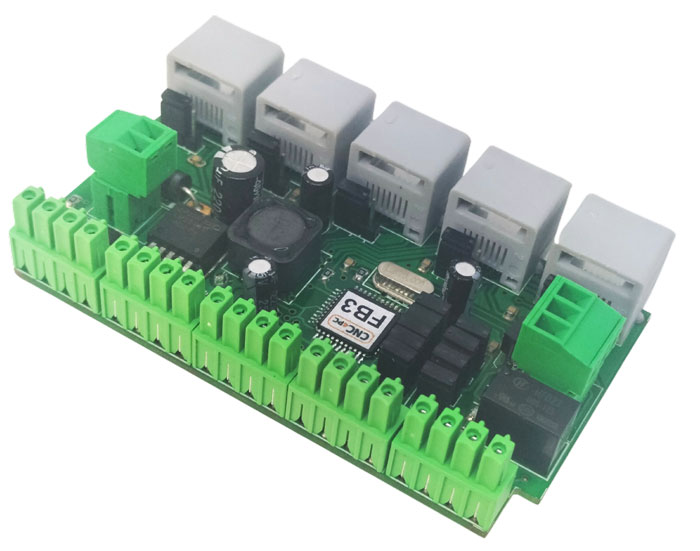

C86MASSO Connector Board for the MASSO-G3 Controller

(0 review)
This board interface is used for the connection between MASSO-G3 CNC and C34 Boards.

FEATURES
 • Enable and disable the drives.
• Servo Fault Detection.
• RJ45 connectors for the axes.
• Electromechanical relay reflects the ACTIVE / FAULT Status of a servo.
• Power terminal (12VDC to 24VDC).
• Status LEDs for fault axis and relay status.
• The board can be activated and start monitoring for a driver's fault using the axis enable or NO_FAULT signal NEW.

$ 60.48 $ 60.48

Add to cart
Add to wishlist
Documents
User Manual C86MASSO-G3 Rev.4 Connection C34ES-DH Rev.2 with C86MASSO-G3 Wiring a Servo using the C34 board and the C86 MASSO Connector Board to a MASSO Wiring Sample Masso G3 + PlasmaSens Wiring Sample C86MASSO-G3 with Limit Wiring Sample C86MASSO-G3 with Huanyang VFD Wiring sample for C34G201 rev1 with C86MASSO-G3 Wiring Sample for C34SZGH rev1 with C86MASSO-G3 Wiring Sample MASSO G3 + C86MASSO + C34DYN4 1 Wiring Sample for C34CP rev1 with C86MASSO-G3 Wiring Sample MASSO G3 + CAP04 Wiring Sample MASSO G3 + C86MASSO + C34DG4S Wiring Sample MASSO G3 + C86MASSO + C34DYN4 Wiring Sample MASSO G3 + C86MASSO + C34KLD
