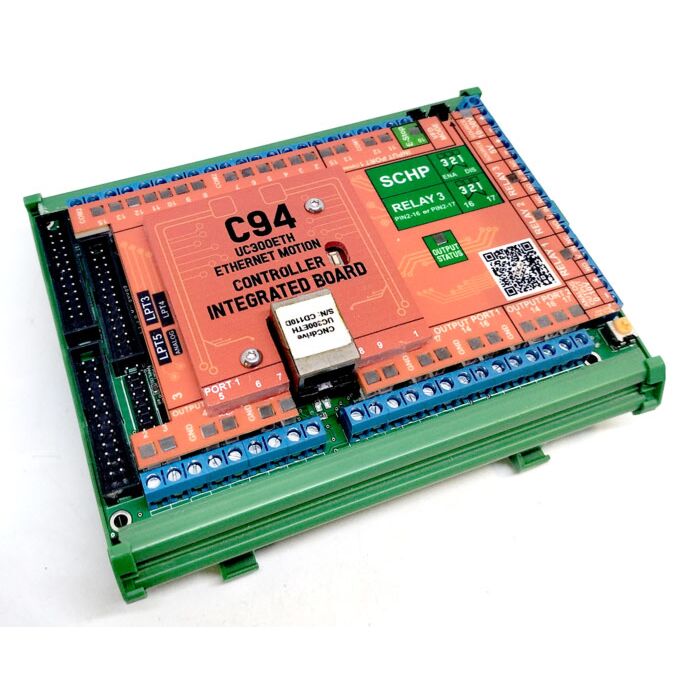

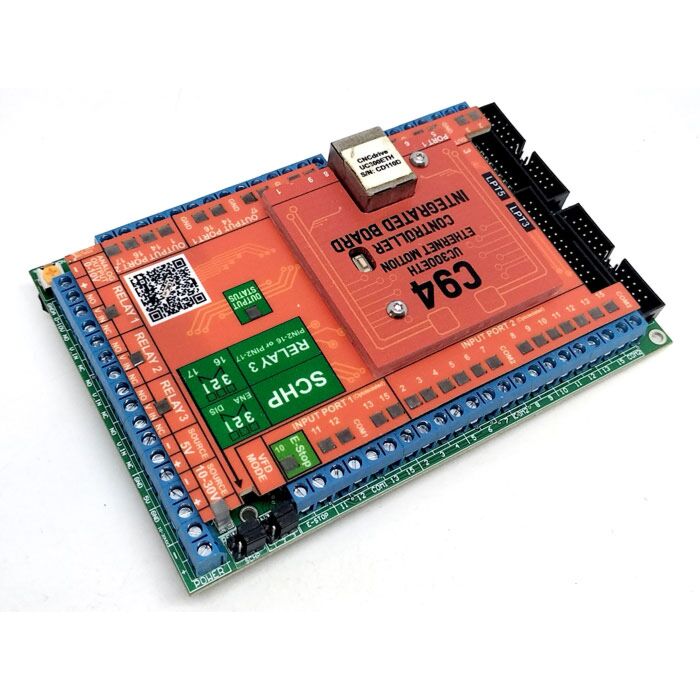

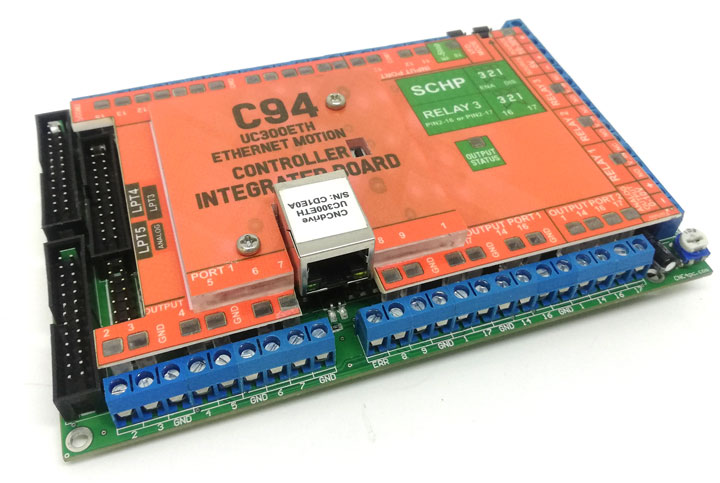

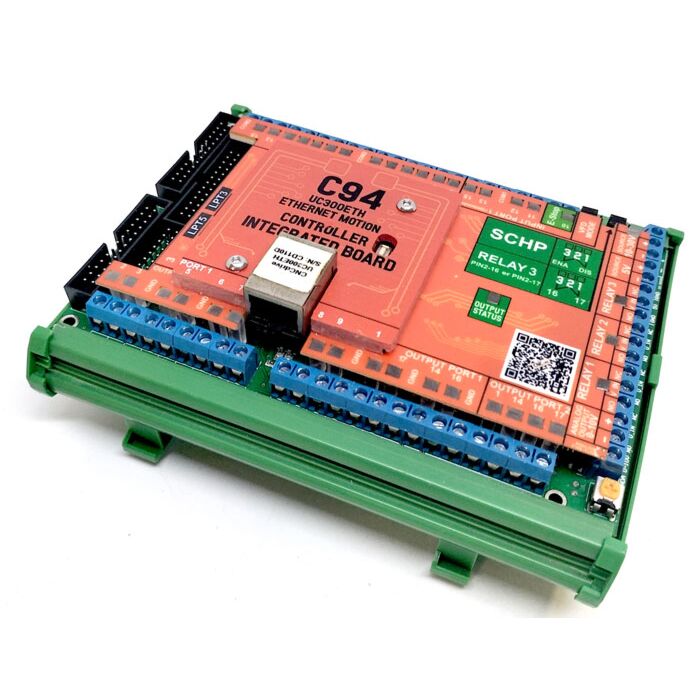

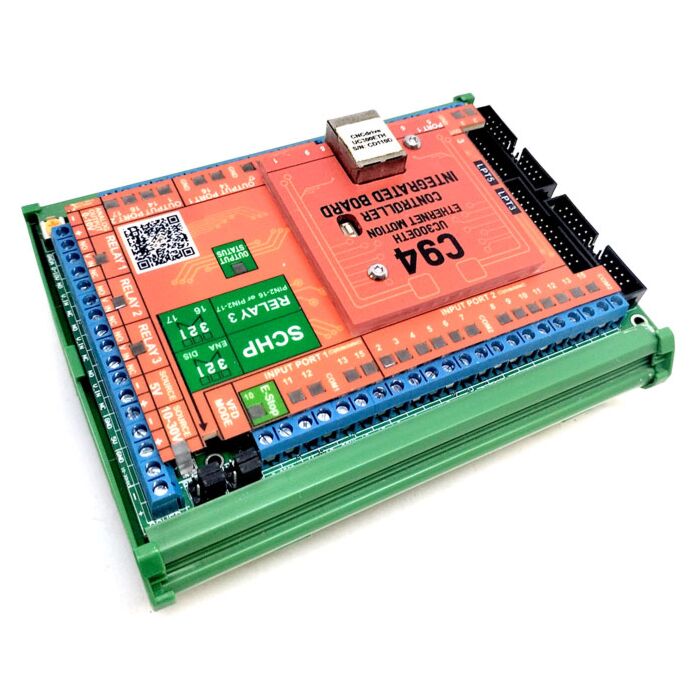

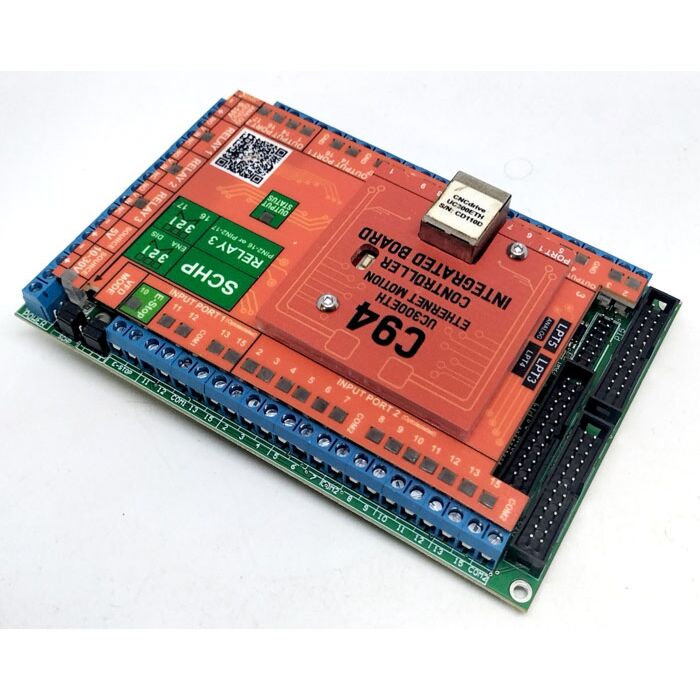

C94 - Multifunction Board

The C94 is a High-Speed Motion Controller using an Ethernet connection with True Real-Time Functions. It supports Mach3/4 and UCCNC so it can be highly flexible.

Connect ANYTHING with Clean and Simple Connections

• Steppers
• VFD
• Limits/Homes.
• Vacuum
• Probe
• Coolant Pump.
• etc...

Highly Expandable:

• Relay Boards. M26
• Breakout Boards. C79, C80, C10D
• Pendant. C22 / MPG2/MPG4/MPG16

FEATURES

• Connects directly to the motion controller or parallel ports
• Built-in PWM-Based Speed Control and Two Built-in Electromechanical Relays with NO and NC positions for spindle control.
• The system monitors:

        -  E-Stop

        -  Safety Charge Pump.

• Electromechanical Relay with NO and NC positions for general purpose (Port_2 16 or 17, jumper-selectable).
• Microcontroller based SCHP.
• Optoisolated inputs working at 5-24VDC.
• Can be powered with a voltage between +10 and +30VDC.
• Status LEDs on all input and Output connections.

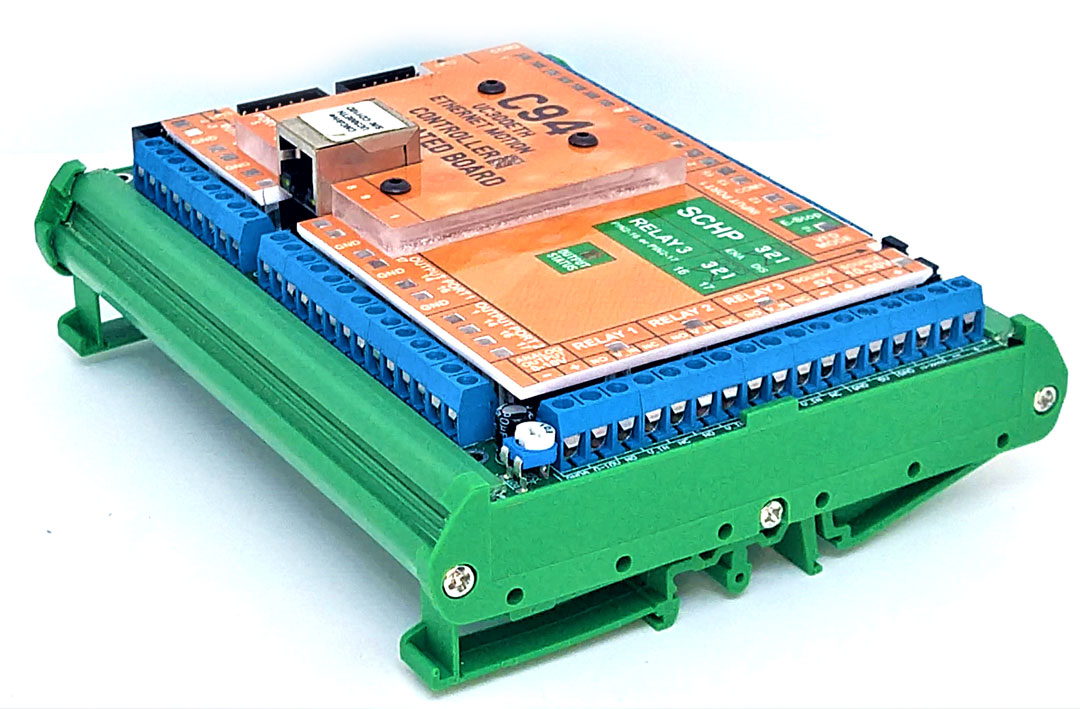

• DIN Rail mountable.
• Open Collector Outputs pins 1, 14, 16, 17.
• Screw-On connections for all terminals.
• Status LEDs for enable.
