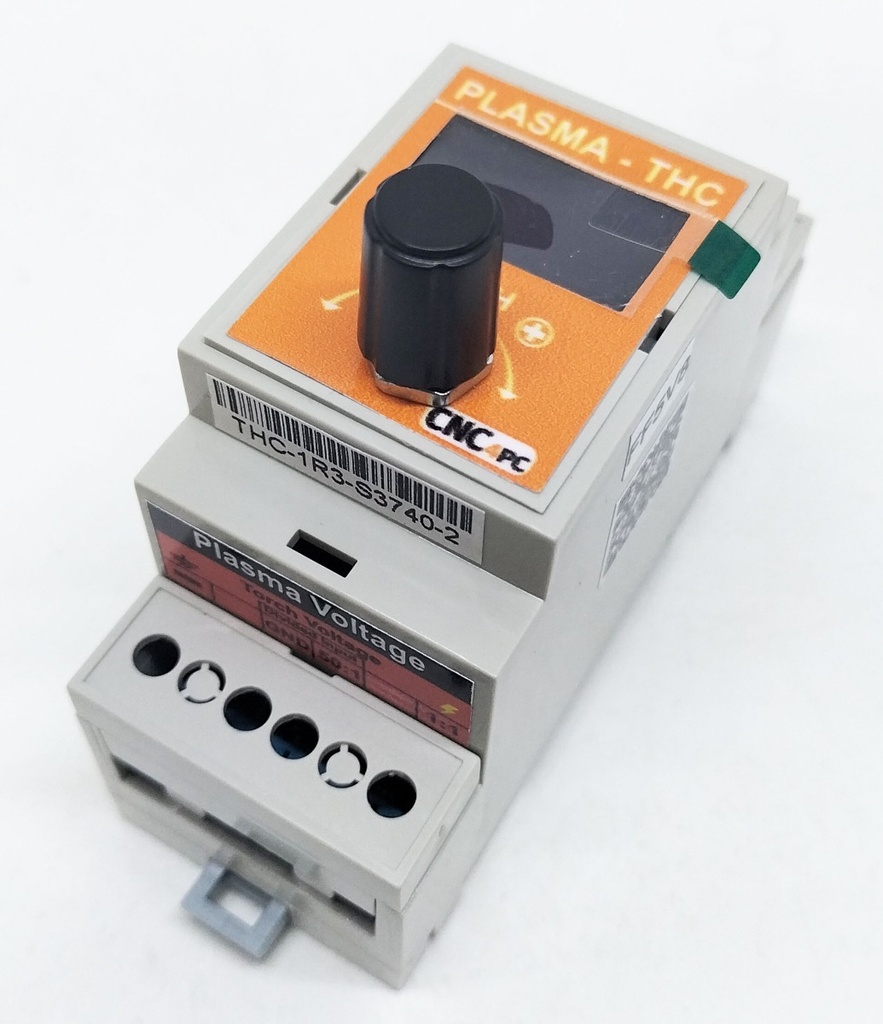

THC-1 Plasma Torch Height Control

OVERVIEW

This module allows controlling the height the plasma torch head relative to work piece during plasma CNC operation, it supports either raw torch head voltage or an input of 0-10VDC, the ARC OK, UP and DOWN outputs are isolated.

FEATURES

Open collector to optoisolated output working at 5 to 24VDC.
Built-in Voltage Divider for connecting to the voltage on the torch or can use the 0-10VDC from a voltage divider from the plasma.
LCD Screen.
10 to 30VDC Power Terminal (+24 Typical).
Isolated Power Connection.
Din Rail Mountable.
Divider input.
