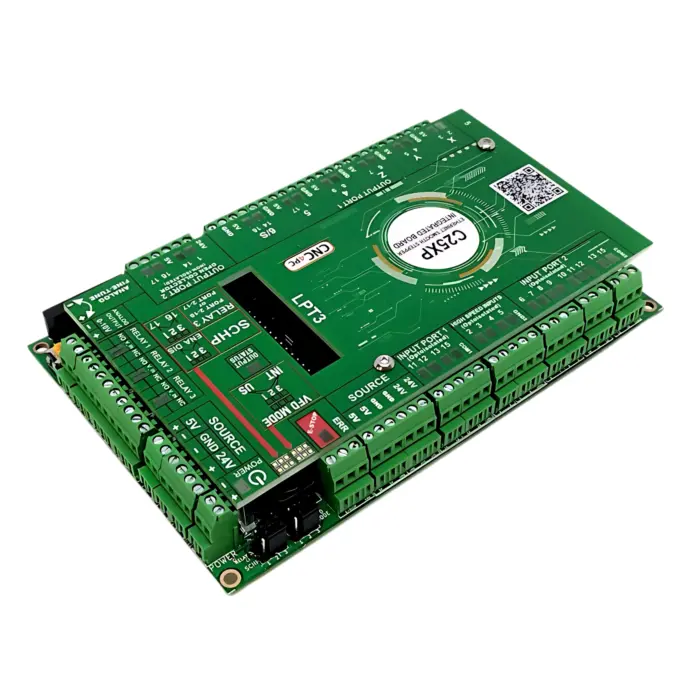

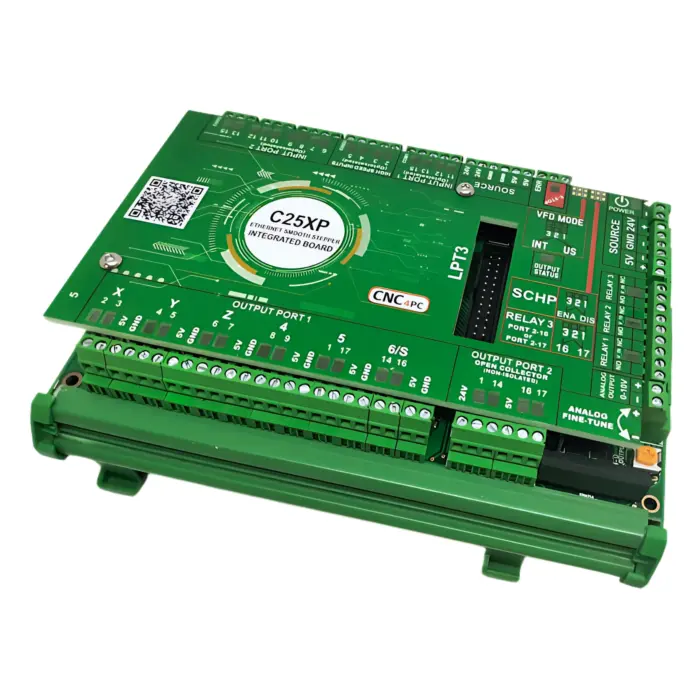

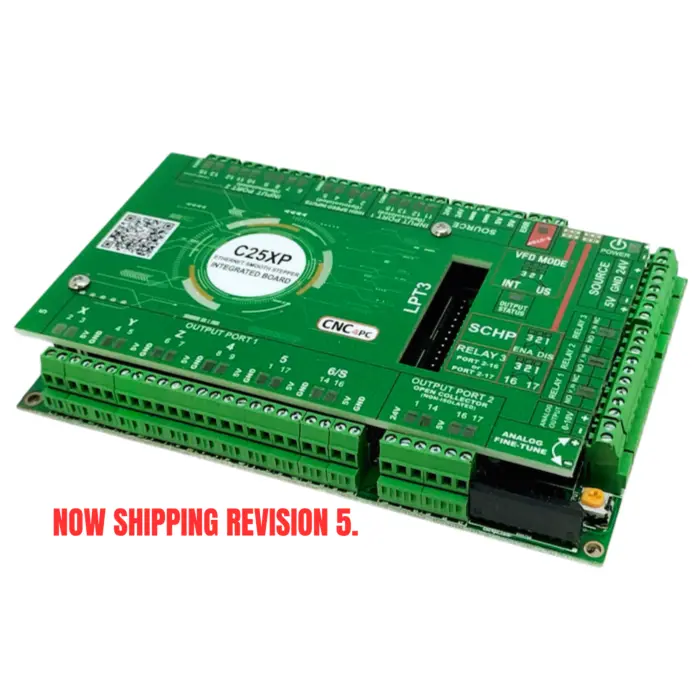

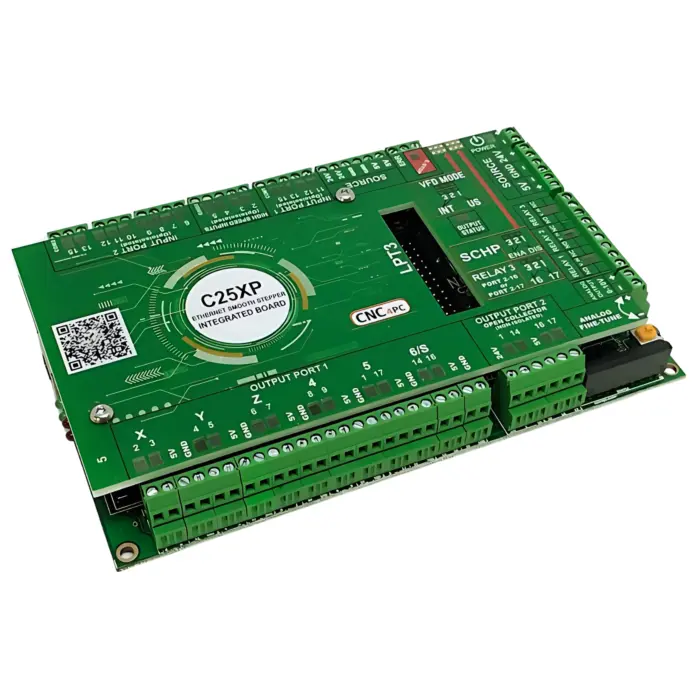

C25XP - Smooth Stepper Integrated Board

https://www.cnc4pc.com/web/image/product.template/4725/image_1920?unique=94b551f

The C25XP is a High-Speed Motion Controller using an Ethernet connection with True Real-Time Functions. It supports Mach3/4 so it can be highly flexible.

136.00 136.0 USD 136.00

Not Available For Sale

    This combination does not exist.

    Full of Features

    • Can ship with the Ethernet Smooth Stepper Motion Controller installed
    • when purchased as a bundle.
    • Built-in PWM-Based Speed Control and Two Built-in Electromechanical
    • Relays with NO and NC positions for spindle control.
    • The system monitors:
    • - E-Stop
    • - Safety Charge Pump.
    • Electromechanical Relay with NO and NC positions for general purpose
    • (Port_2 16 or 17, jumper-selectable).
    • Microcontroller based SCHP (Safety Charge Pump).
    • Optoisolated inputs working at 5-24VDC.
    • Uses a single +24VDC to power the system. It generates the isolated voltage for the spindle control circuit and +5vdc for circuits using TTL logic.
    •  Status LEDs on all input and output connections.
    • DIN Rail mountable.
    • Open Collector Outputs pins 1, 14, 16, 17 on Port 2.
    • Screw-On connections for all terminals.
    • Status LEDs for enable.
    • The ENABLE Output of the C25XP is now tied to LPT3. So that relay or breakout boards connected to LPT3 will be enabled/disabled with the C25XP.
    • Available installers and configuration files that configure all the functions of the board
    • Driver Fault Detection pin.  NEW
    • 4 pins can be used for High-Speed input. NEW

    Connect ANYTHING with Clean and Simple Connections

    • Steppers
    • VFD
    • Limits/Homes.
    • Vacuum
    • Probe
    • Coolant Pump.
    • etc...



    Highly Expandable:
