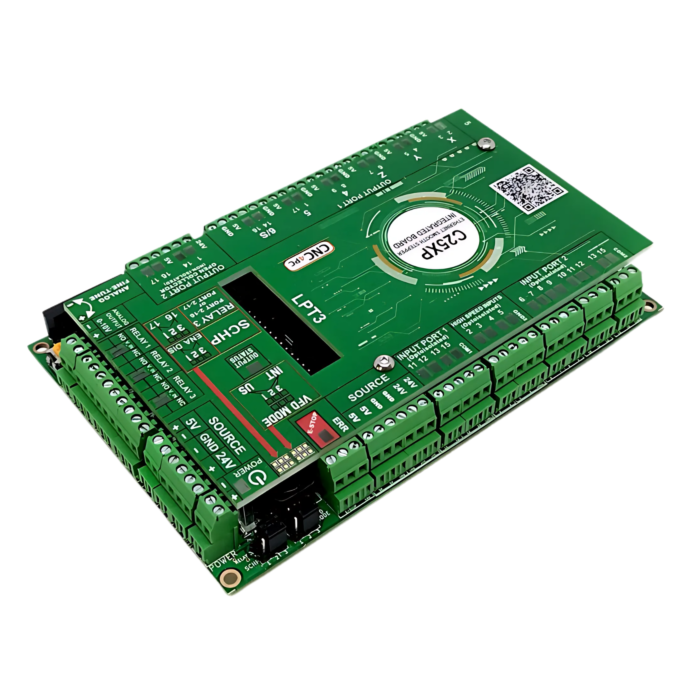

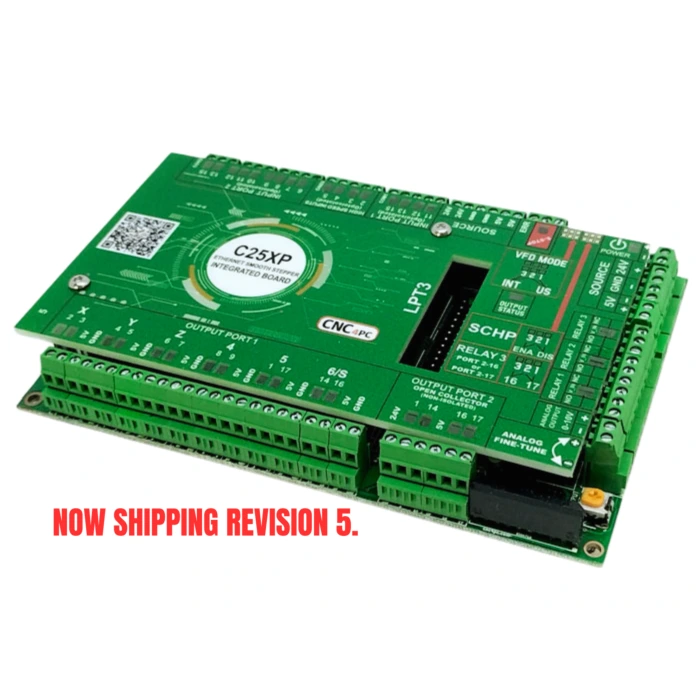

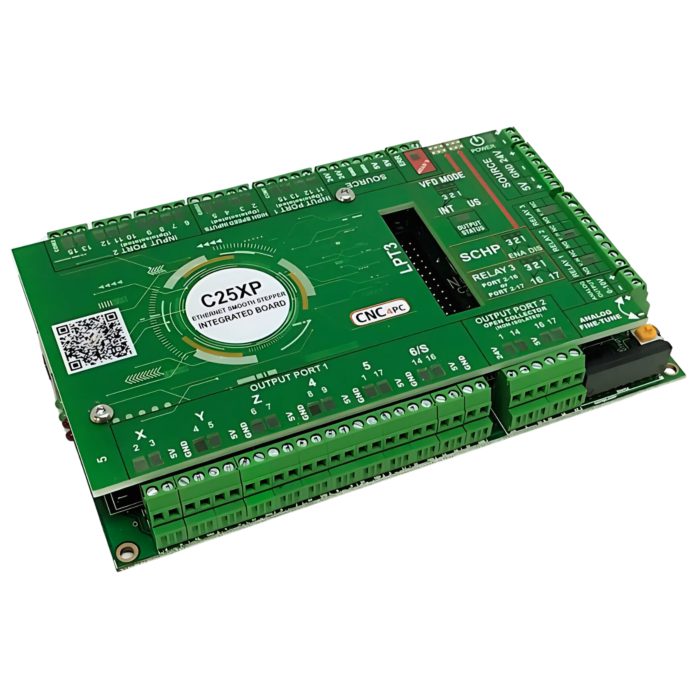

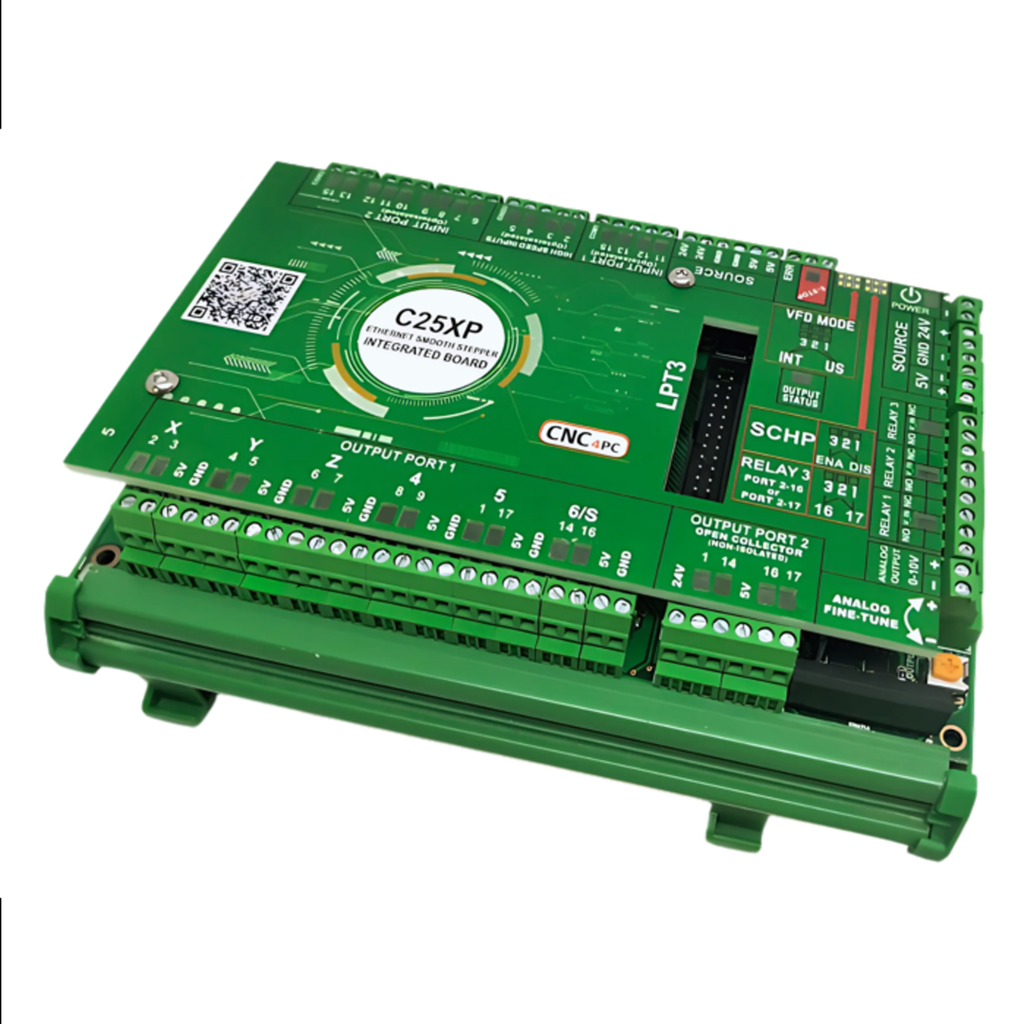

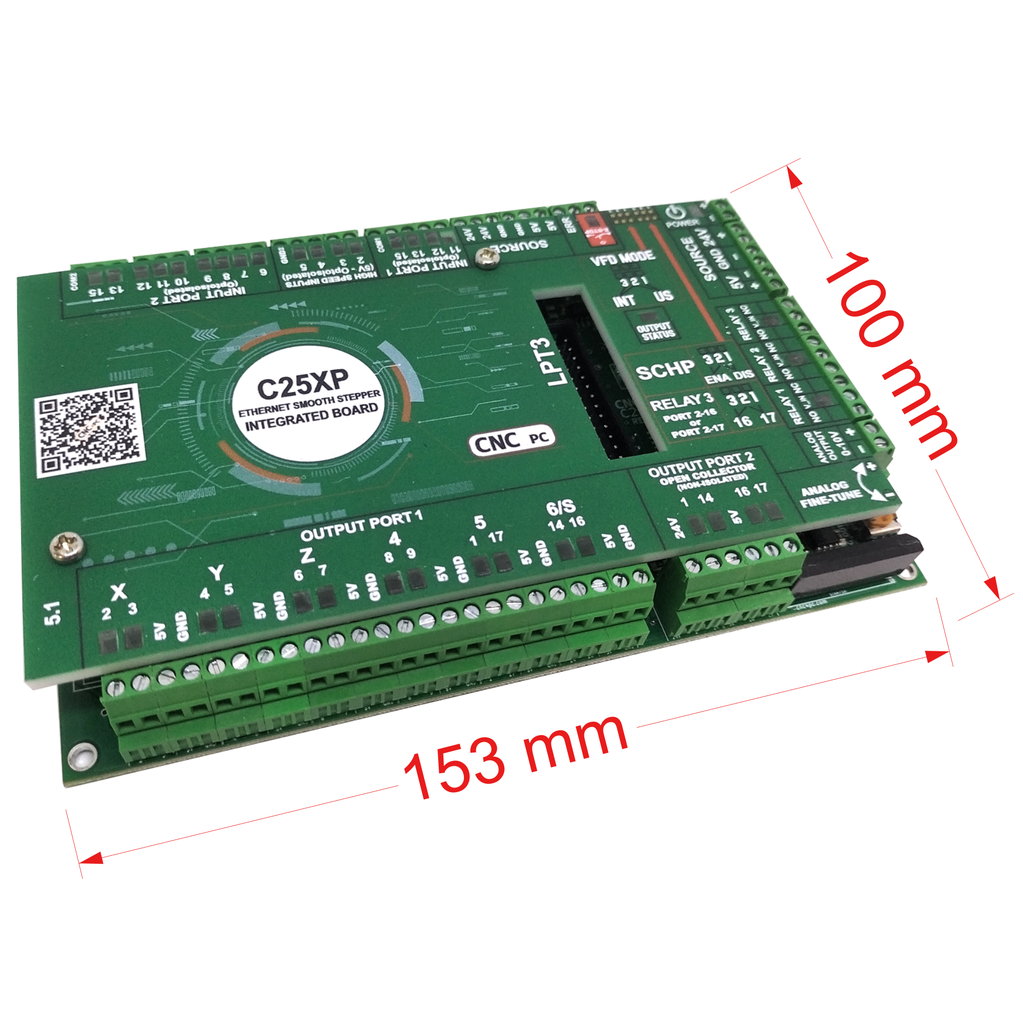

C25XP - Smooth Stepper Integrated Board

(0 review)

The C25XP Smooth Stepper Integrated Board is an advanced CNC breakout and control interface designed for Mach3, Mach4, and Ethernet SmoothStepper (ESS) systems. It combines motion-controller connectivity with spindle/VFD control, optoisolated digital I/O, relays, safety monitoring, and convenient screw-terminal connections in a single integrated board.

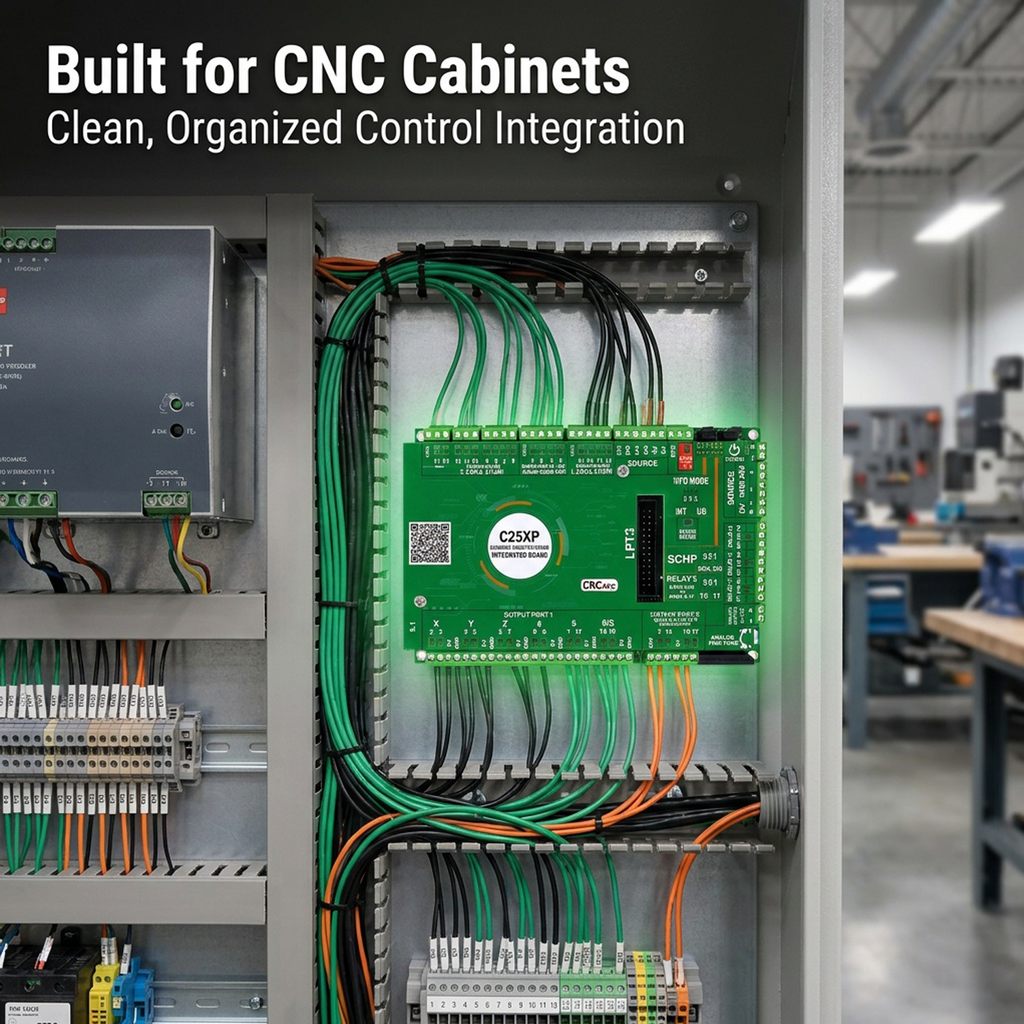

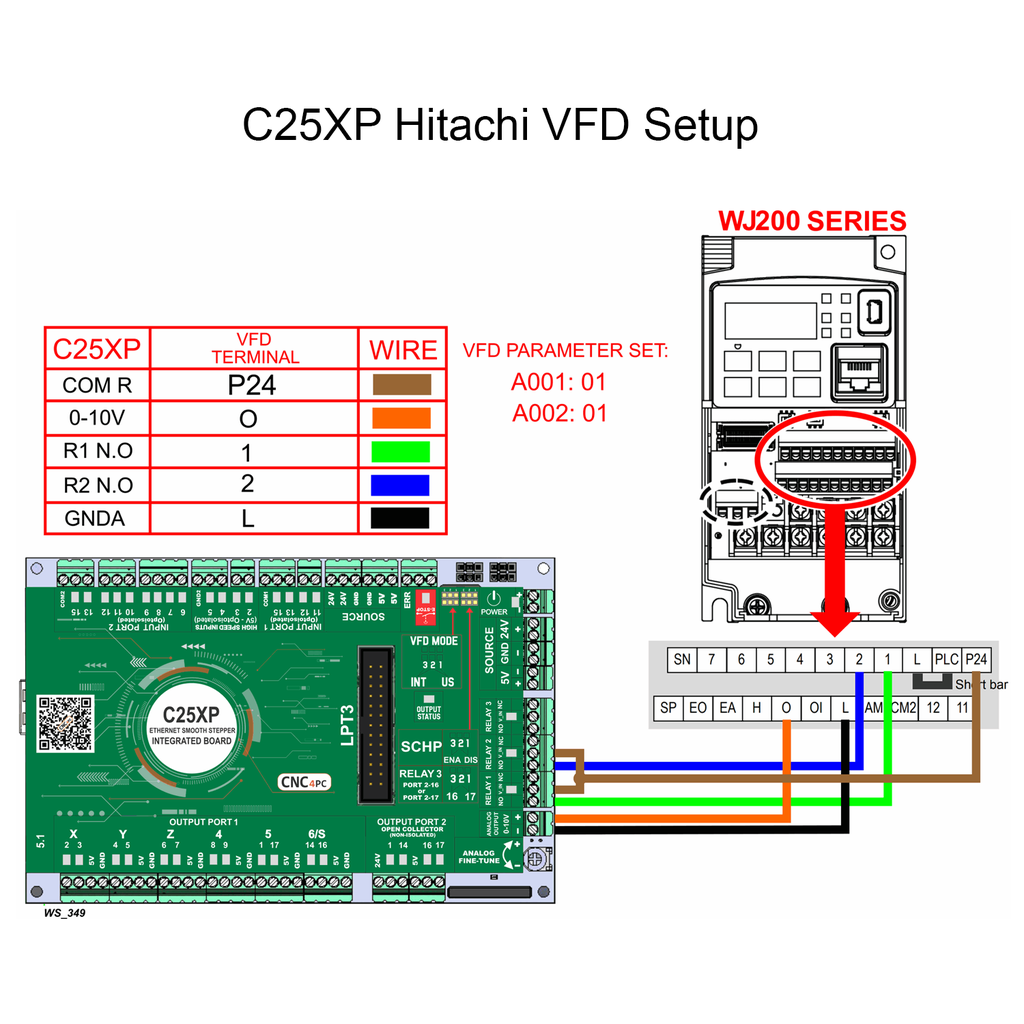

The C25XP is ideal for CNC routers, mills, plasma machines, and custom CNC retrofits, providing a centralized interface between the CNC motion controller and machine electronics. The board supports optoisolated inputs from 5–24 VDC, built-in PWM-based spindle speed control, two relays for spindle control, and monitoring for E-Stop, Safety Charge Pump, and Driver Fault signals.

Instructions

Ethernet Smooth Stepper Motion Controller Not Included.


$ 148.00 $ 148.00

Add to cart
Add to wishlist
Documents
User's Manual C25XP Rev.5 Assembly of a C25XP CNC4RX7 ATC Project using the C25XP Step Model C25XP_Rev5.zip

Full of Features

  • Built-in PWM-Based Speed Control and Two Built-in Electromechanical
  • Relays with NO and NC positions for spindle control.
  • The system monitors:
  • - E-Stop
  • - Safety Charge Pump.
  • Electromechanical Relay with NO and NC positions for general purpose
  • (Port_2 16 or 17, jumper-selectable).
  • Microcontroller based SCHP (Safety Charge Pump).
  • Optoisolated inputs working at 5-24VDC.
  • Uses a single +24VDC to power the system. It generates the isolated voltage for the spindle control circuit and +5vdc for circuits using TTL logic.
  •  Status LEDs on all input and output connections.

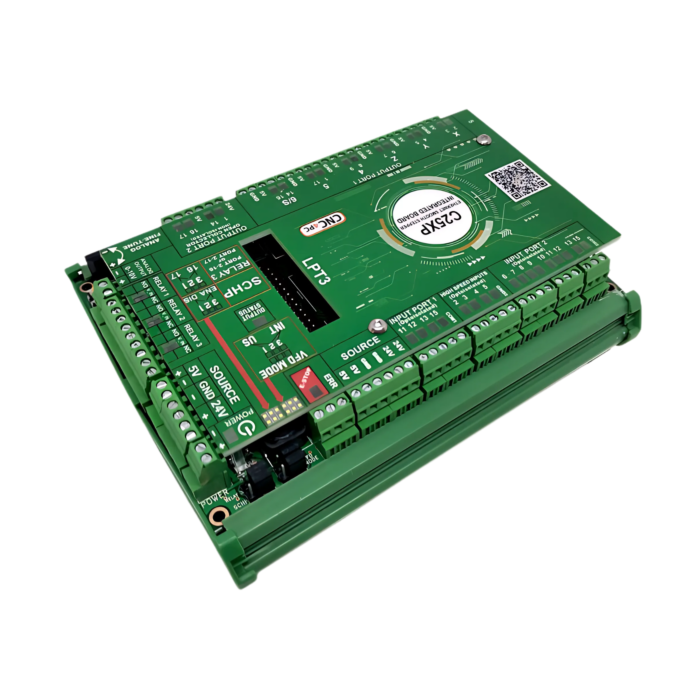

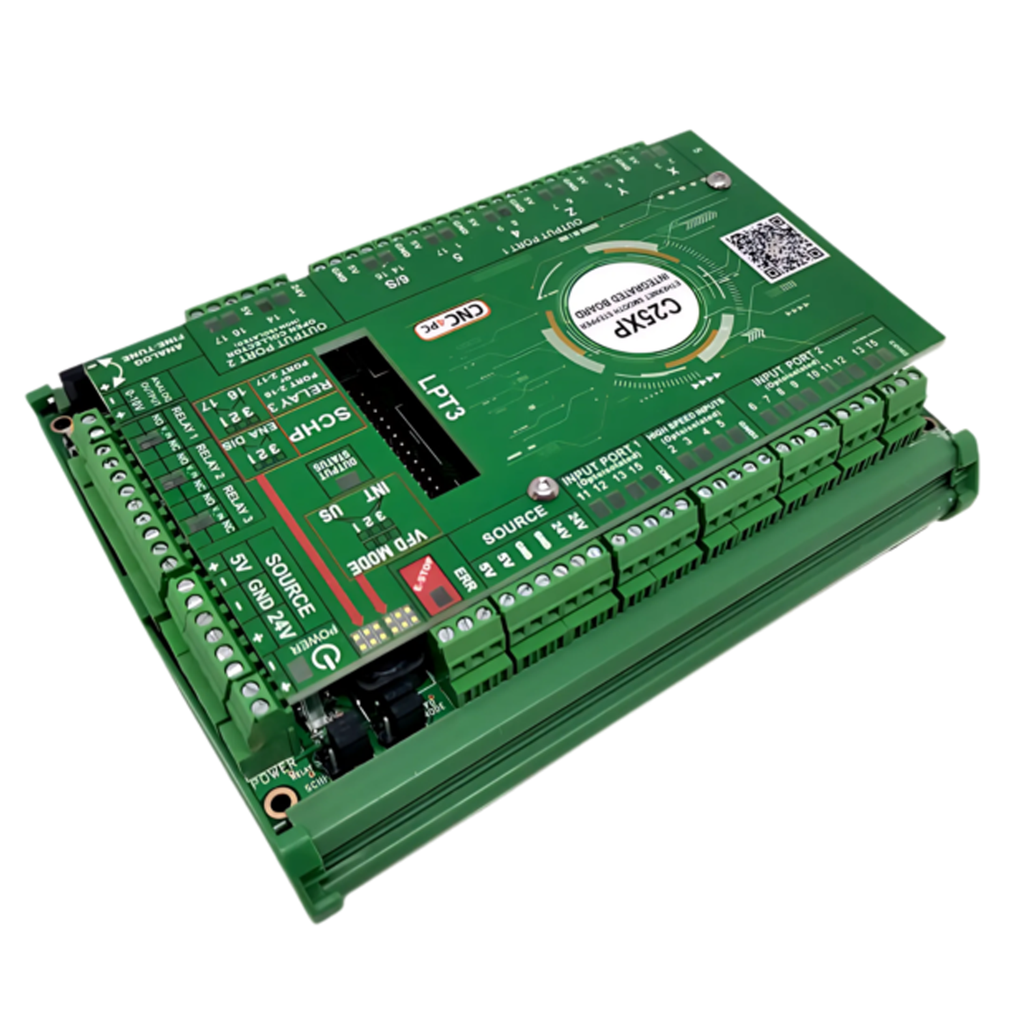

  • DIN Rail mountable.
  • Open Collector Outputs pins 1, 14, 16, 17 on Port 2.
  • Screw-On connections for all terminals.
  • Status LEDs for enable.
  • The ENABLE Output of the C25XP is now tied to LPT3. So that relay or breakout boards connected to LPT3 will be enabled/disabled with the C25XP.
  • Available installers and configuration files that configure all the functions of the board
  • Driver Fault Detection pin.  NEW
  • 4 pins can be used for High-Speed input. NEW

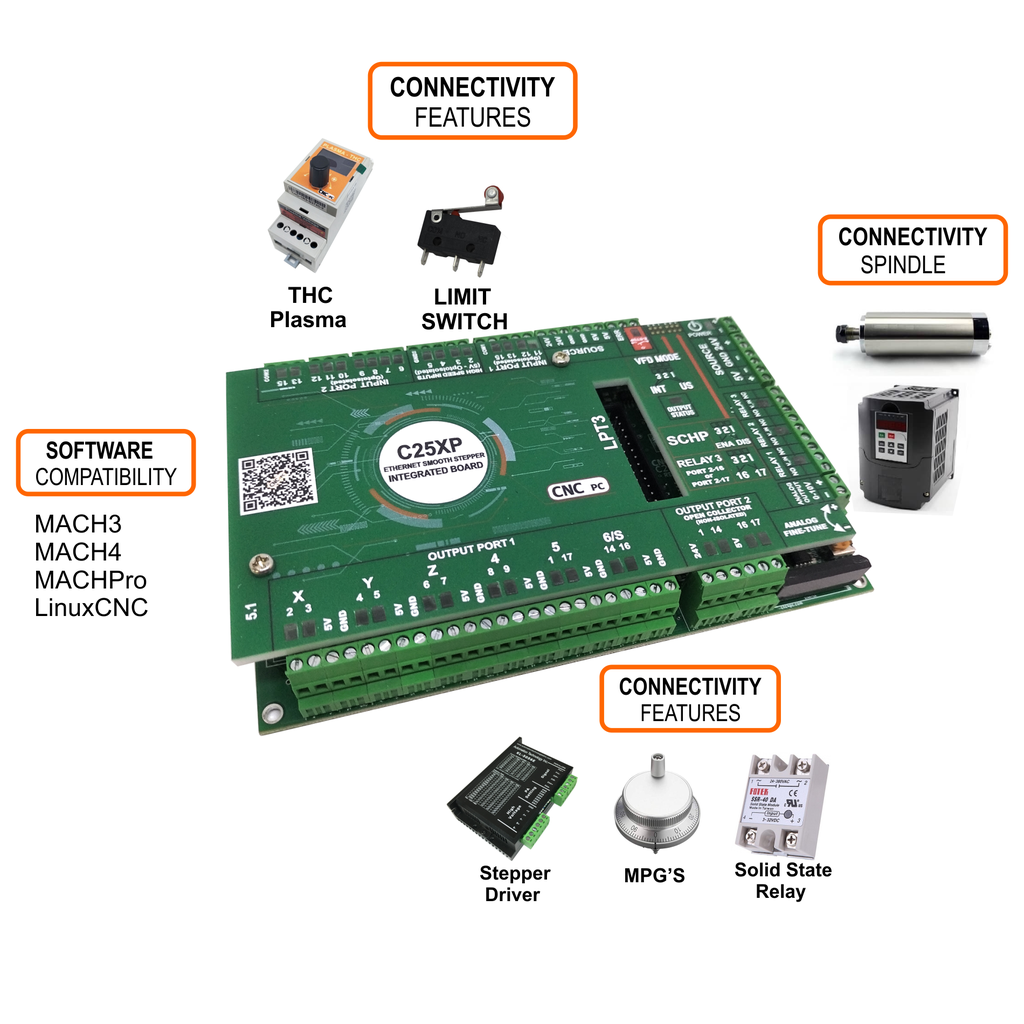

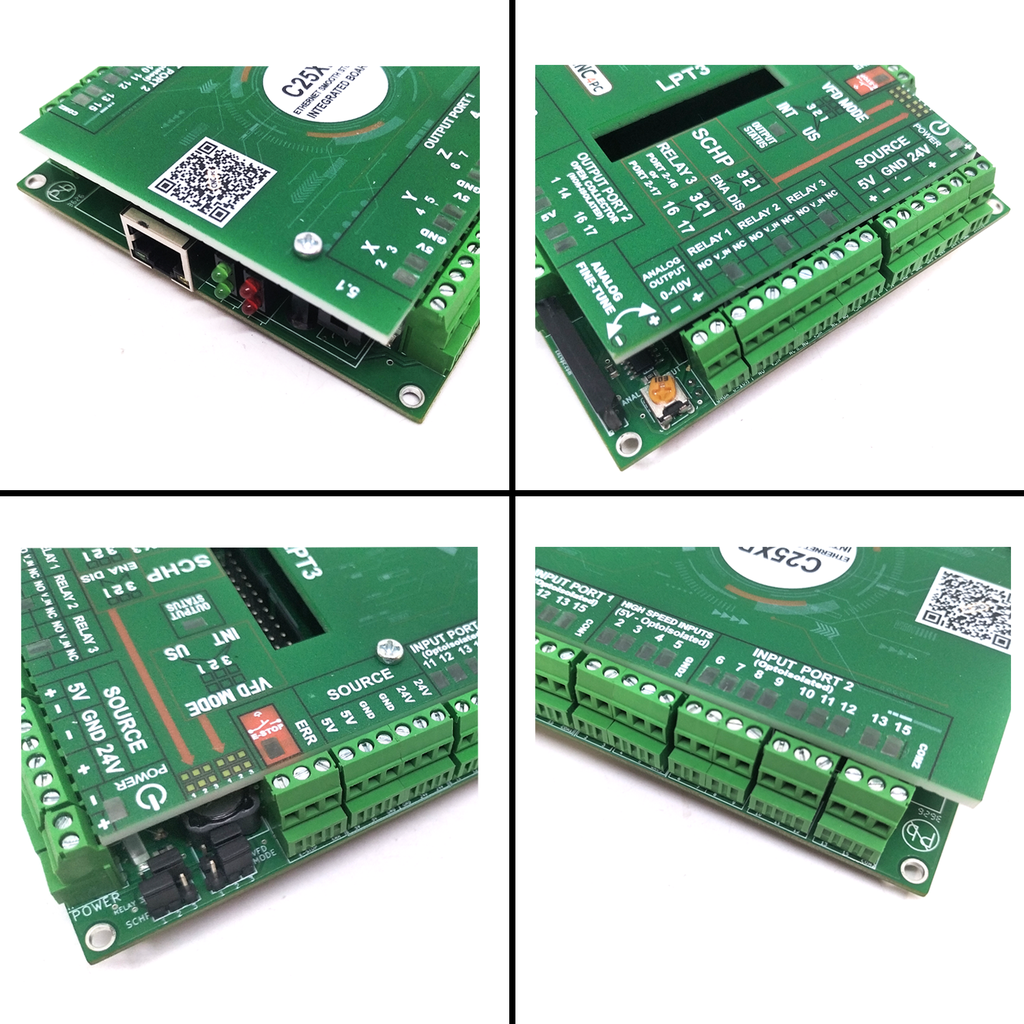

Connect ANYTHING with Clean and Simple Connections

  • Steppers
  • VFD
  • Limits/Homes.
  • Vacuum
  • Probe
  • Coolant Pump.
  • etc...



Highly Expandable:
