for Driver ALLEN BRADLEY ULTRA 3000

OVERVIEW

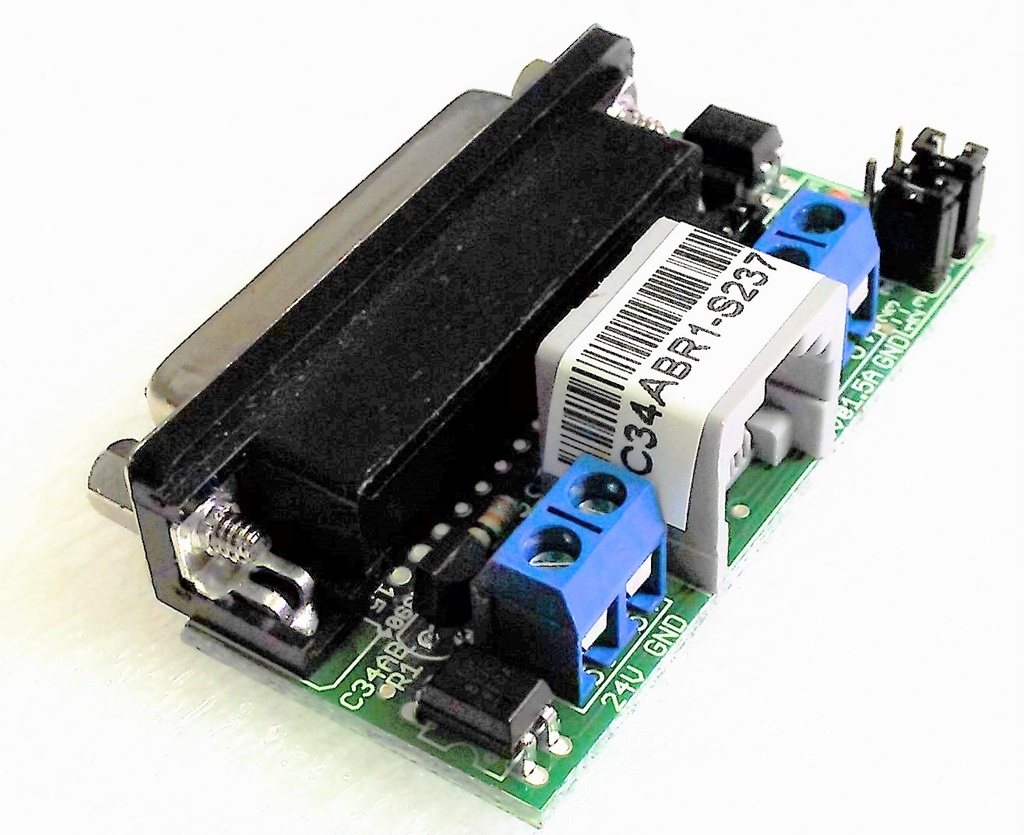

This interface board is used for the connection between C82, C76, C86ACORN, C86MASSO, and the ALLEN BRADLY ULTRA 3000 SERVO-DRIVE.

FEATURES

• HDM44D connector for Connection of Driver.

• RJ45 Connector for Axis.

• Select Jumper for Hard Enable or Soft Enable.

• Select Jumper for signals Differentials

• Terminals for external power supply 5V and 24V
