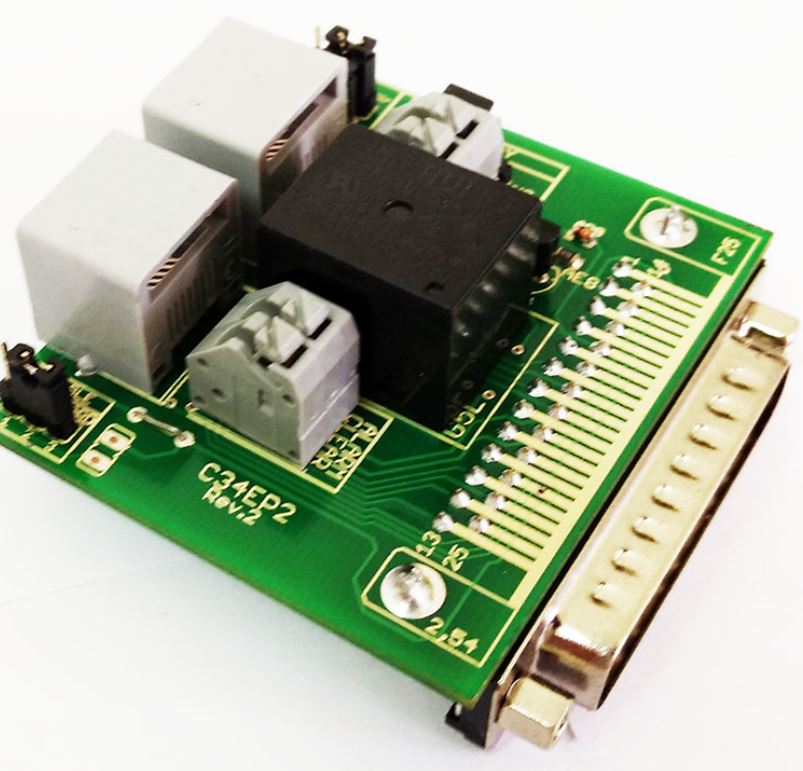

C34EP2 - Board for Driver Masxine EP2

OVERVIEW

This interface board is used for the connection between C82, C76, C86ACORN, C86MASSO, and the Maxsine- EP2 AC SERVO-DRIVE.

FEATURES

• DB25 connector for Connection of Driver.
• RJ45 Connector for Axis.
• Select Jumper for Hard Enable or Soft Enable.
• Select Jumper for signals Differentials
• Terminals for external power supply 12VDC or 24VDC
• Terminals for Alarm Clear
• Encoder output

The Beta board still in testing.
