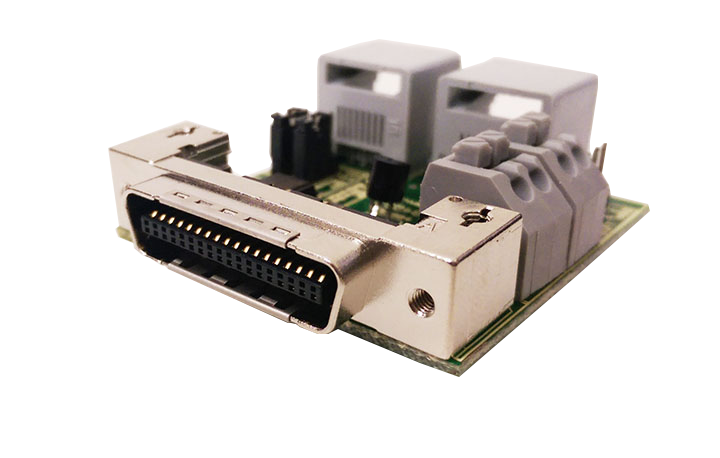

C34QS7 - Driver TO RJ45 Connector Board for ADTECH QS7 Drivers

OVERVIEW

This interfaces board is used for the connection between  C82,  C76, C86ACORN, C86MASSO, and the QS7 Series

FEATURES

• CONN 36 PLUG connectors for Connection of Driver.
• RJ45 Connector for Axis.
• Select Jumper for Hard Enable or Soft Enable.
• Select Jumper for signals Differentials or Step & Direction
• Terminals for external power supply 12VDC or 24VDC
• Terminals for Alarm Clear
• Encoder output
