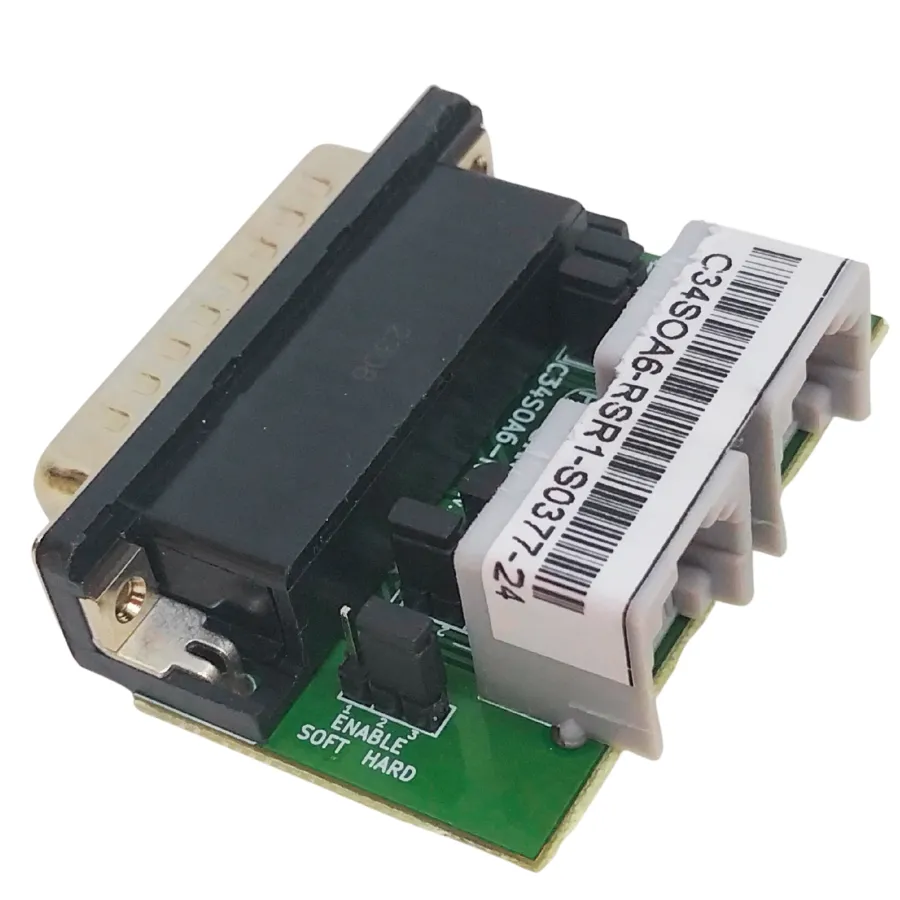

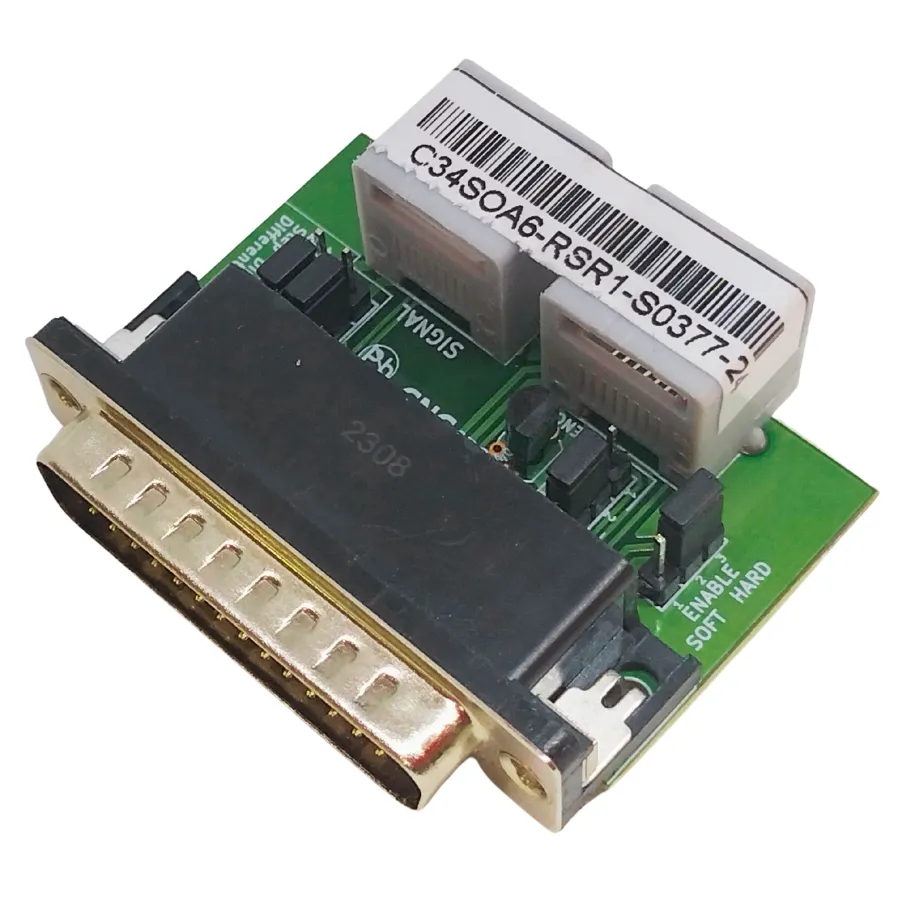

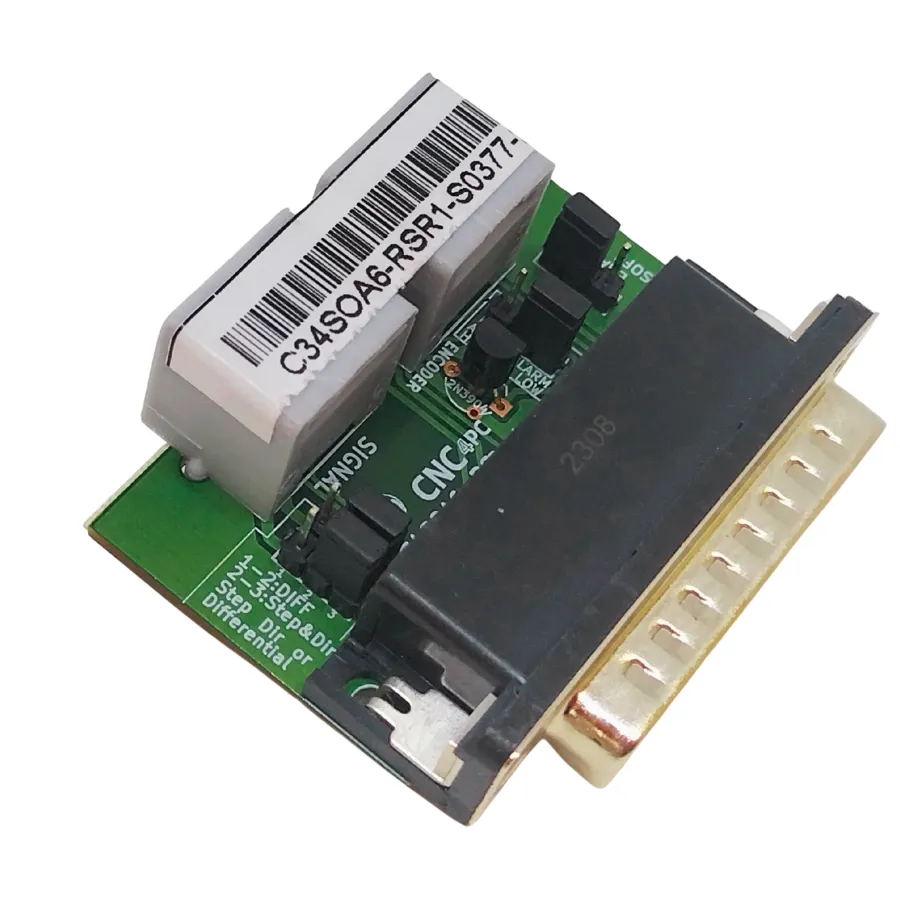

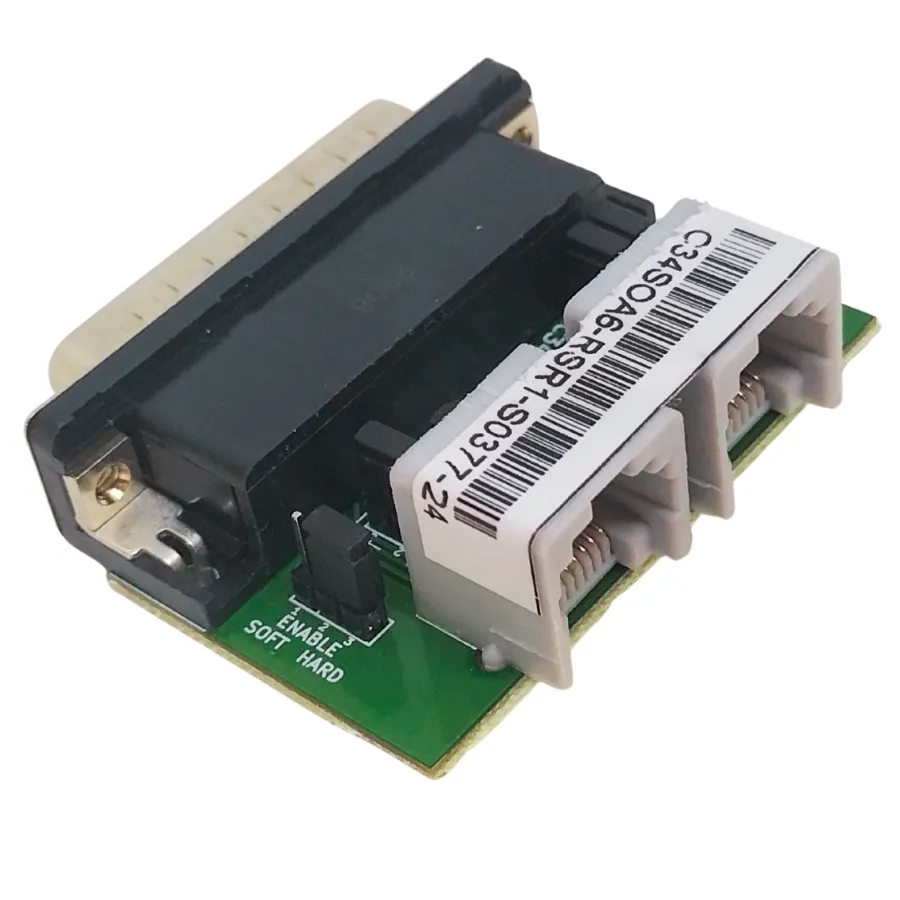

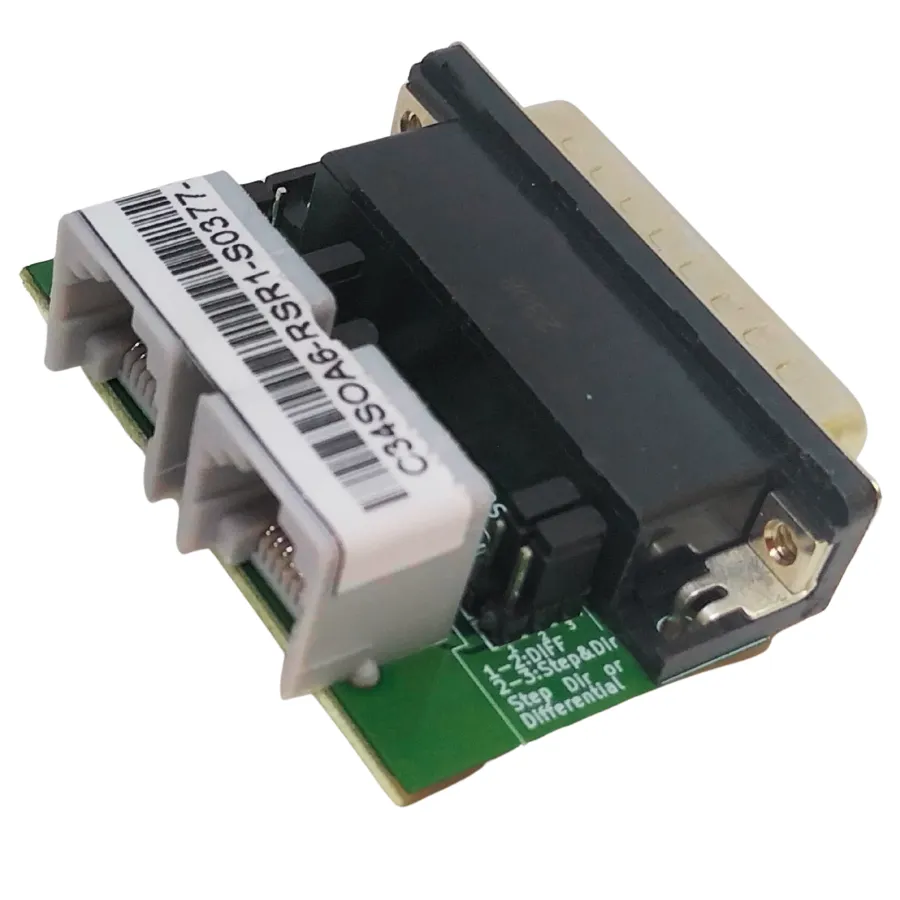

This board interface is used for the connection
between C76, C82, C86ACORN, C86MASSO, C35S, and Stepperonline A6-RS AC Servo Drive.
FEATURES
- HDM44D connector for the connection of the driver.
- RJ45 Connector for
Axis.
- Encoder Output.
- Select Jumper for Hard Enable or Soft Enable.
- Select a jumper for
signal differentials.
- Terminals for the external
drive enable a push button.
- Select Jumper active
Low and active High
Compatible with Stepperonline A6 Servos:
