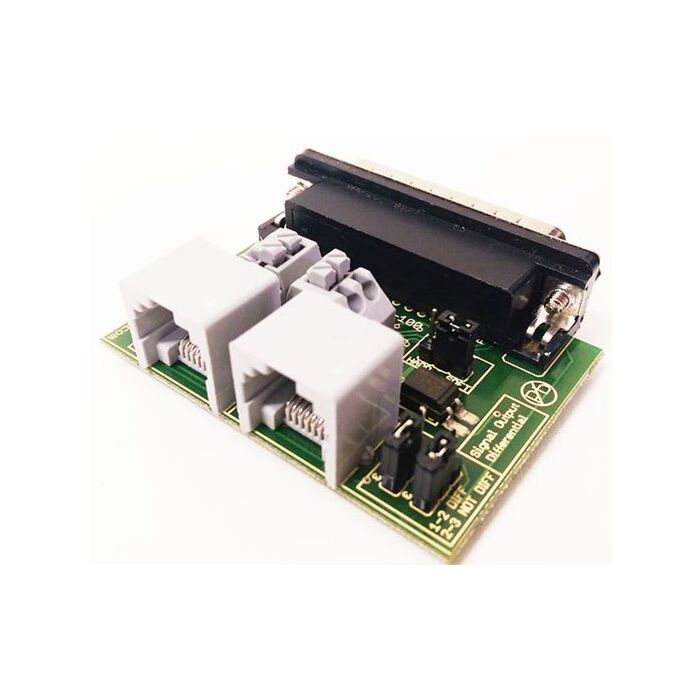

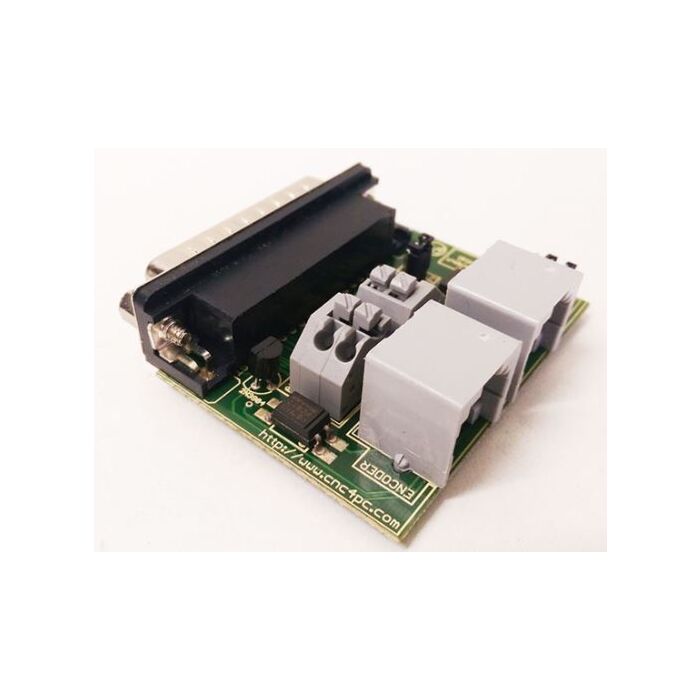

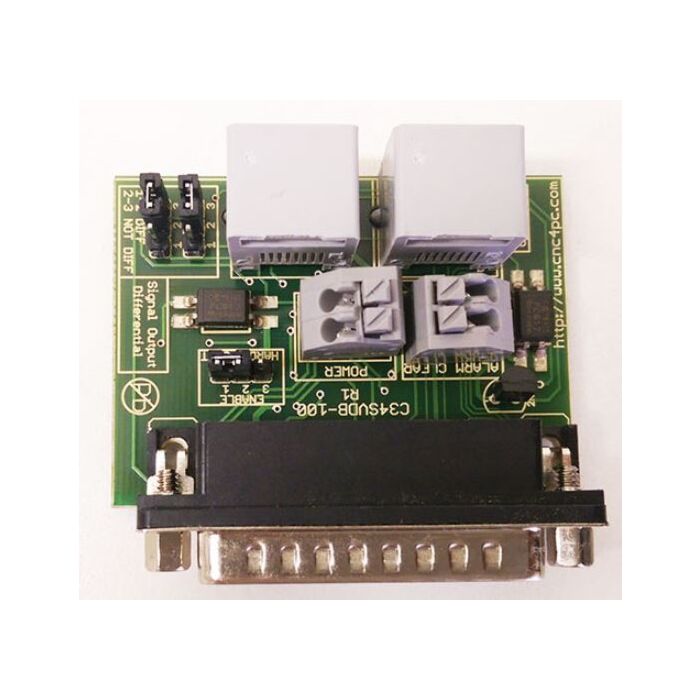

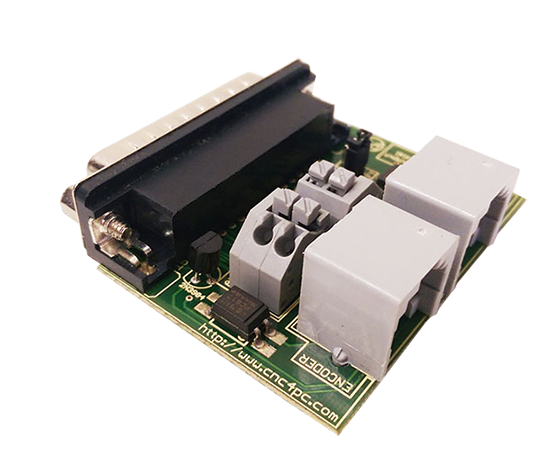

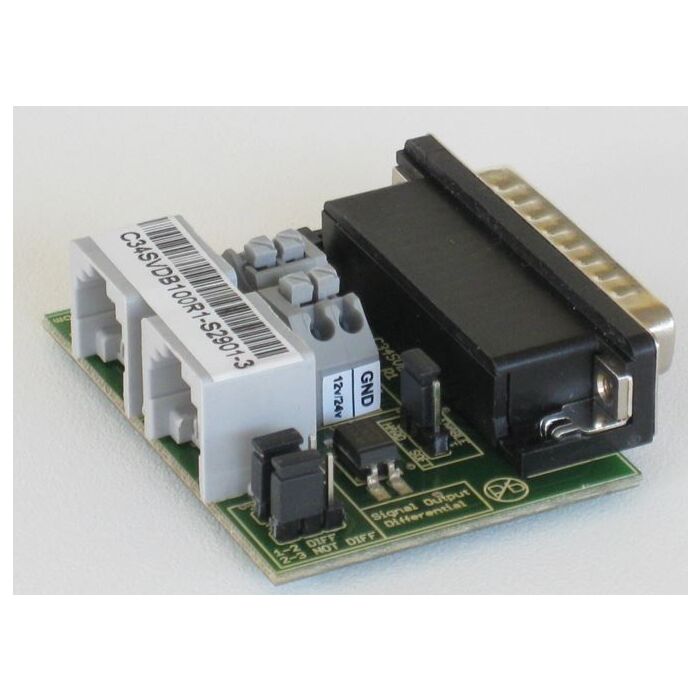

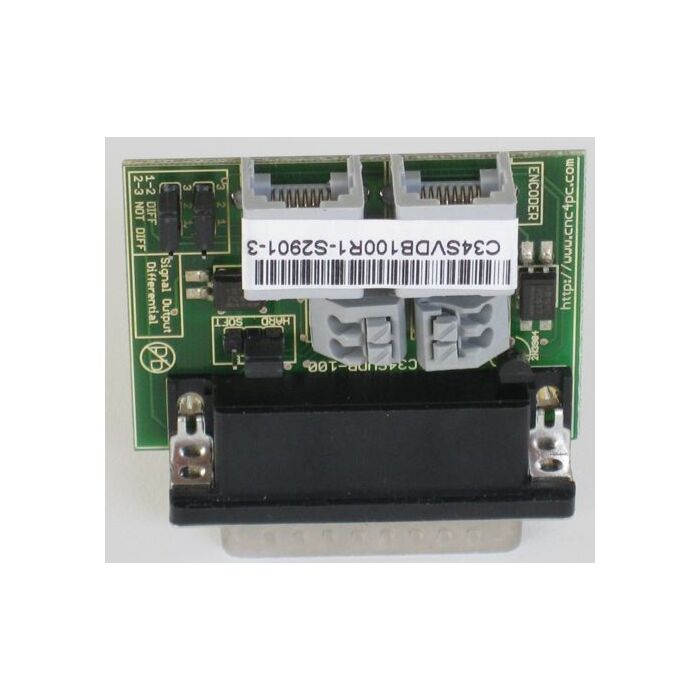

C34SVDB100 - INVT SV-DB100

https://www.cnc4pc.com/web/image/product.template/976/image_1920?unique=ec10437

25.92 25.92 USD 25.92

Not Available For Sale

  • Connector

This combination does not exist.

Connector: Male DB44
OVERVIEW

This interfaces board is used for the connection between  C82 C76C86ACORN, C86MASSO, and the AC SERVO DRIVE.

FEATURES
  • CONN PLUG 44 POS connectors for Connection of Driver.

  • RJ45 Connector for Axis.

  • Select Jumper for Hard Enable or Soft Enable.

  • Select Jumper for signals Differentials

  • Terminals for external power supply 12VDC or 24VDC

  • Terminals for Alarm Clear

  • Encoder output



The beta board is still been tested.
