C34SZGH - Driver Connector Board

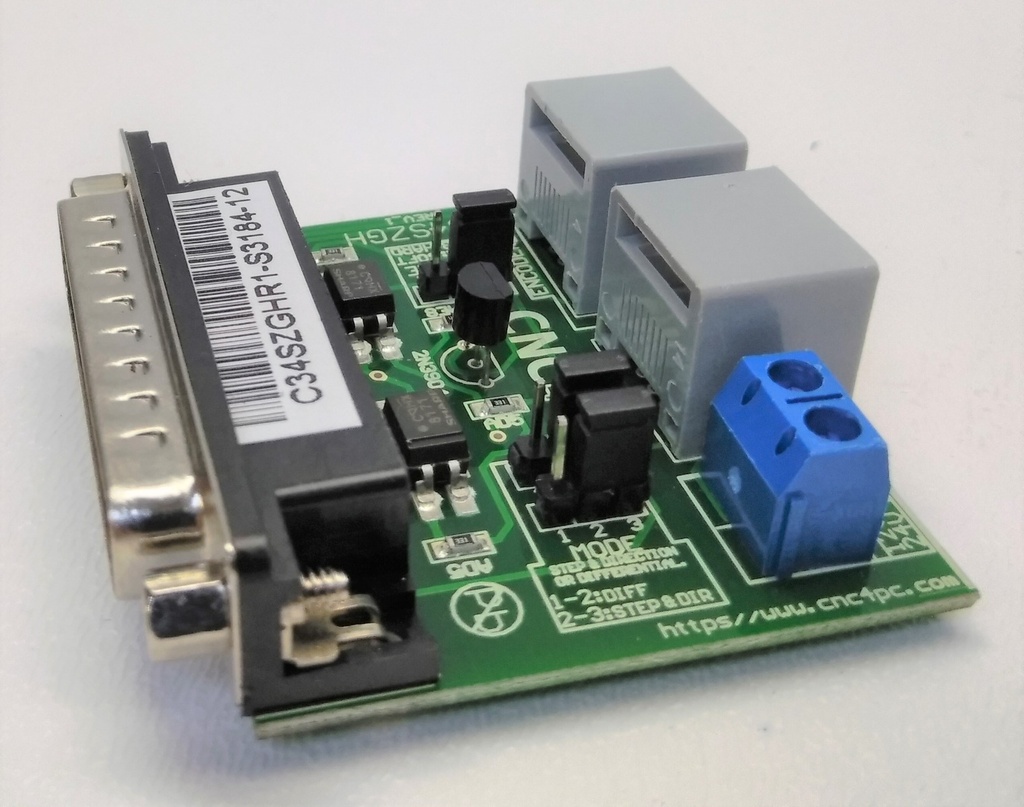

C34SZGH - Driver Connector Board

(0 review)

OVERVIEW

This interface board is used for the connection between C82,  C76, C86ACORN, C86MASSO, and the SZGH SERVO-DRIVE.


FEATURES

  • RJ45 connector for Axis.

  • Select Jumper for Hard Enable or Soft Enable

  • Select Jumper for signals Differentials

  • terminals for external power supply 12VDC or 24VDC

  • Encoder output

$ 19.44 $ 19.44

  • Connector
Add to cart
Add to wishlist
Connector: Male DB25
Documents
User Manual13 Wiring Sample C34SZGH Rev1 with ACORN Wiring Sample C34SZGH Rev1 with C76 Wiring Sample C34SZGH Rev1 with C82 Wiring Sample C34SZGH Rev1 with HTG5 Wiring Sample C34SZGH Rev1 with M16D Wiring Sample C87 Rev1 with C34SZGH and C78
OVERVIEW

This interface board is used for the connection between C82,  C76, C86ACORN, C86MASSO, and the SZGH SERVO-DRIVE.

FEATURES
  • RJ45 connector for Axis.
  • Select Jumper for Hard Enable or Soft Enable
  • Select Jumper for signals Differentials
  • terminals for external power supply 12VDC or 24VDC
  • Encoder output
