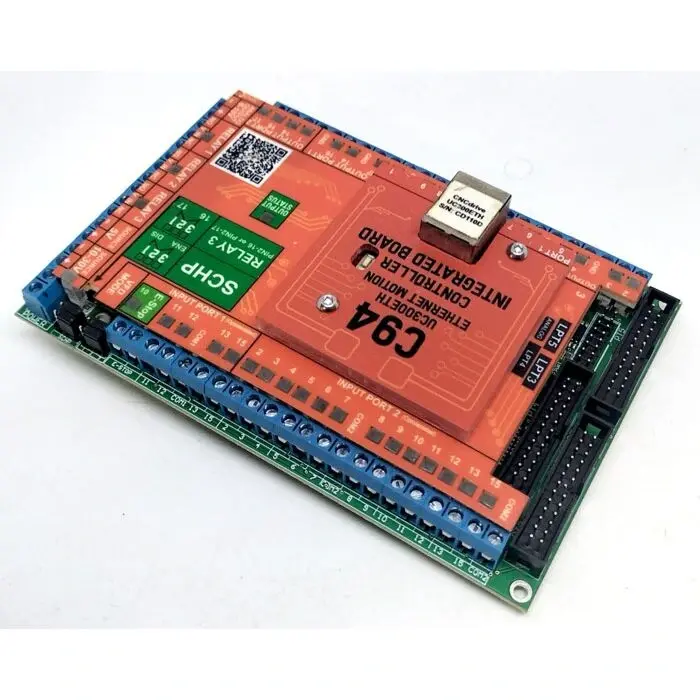

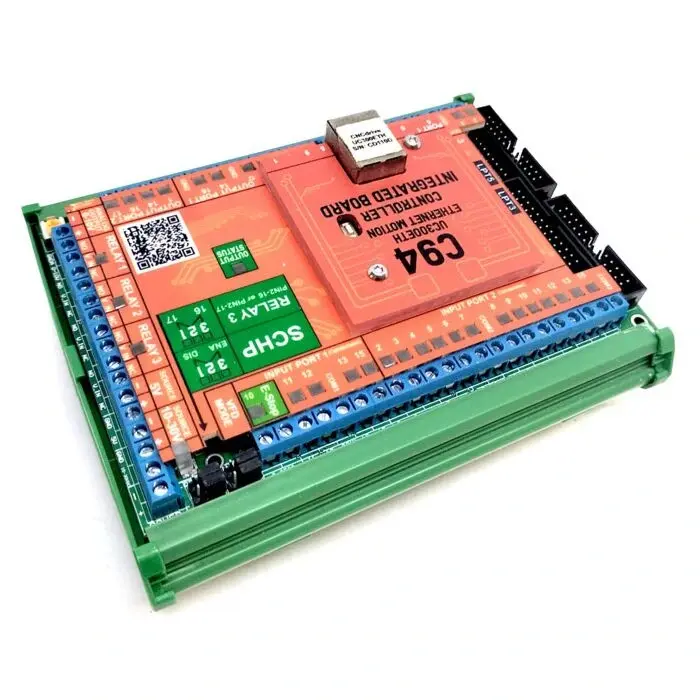

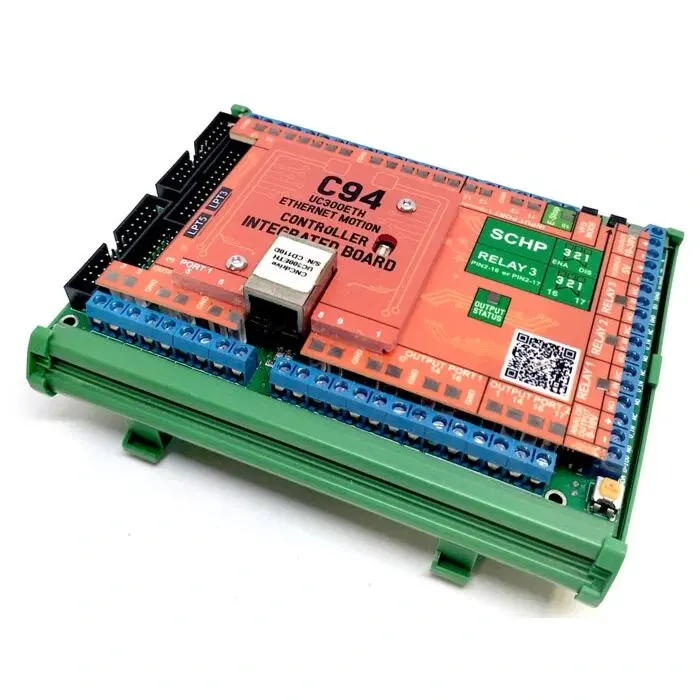

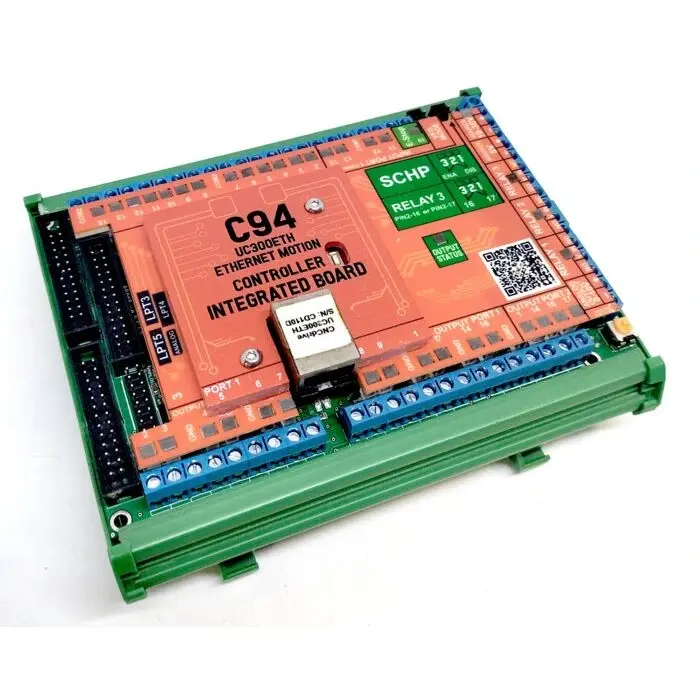

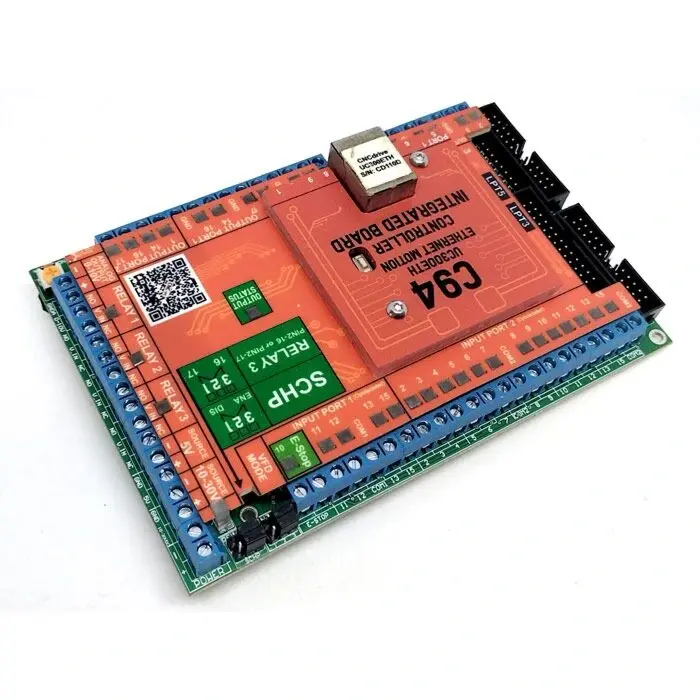

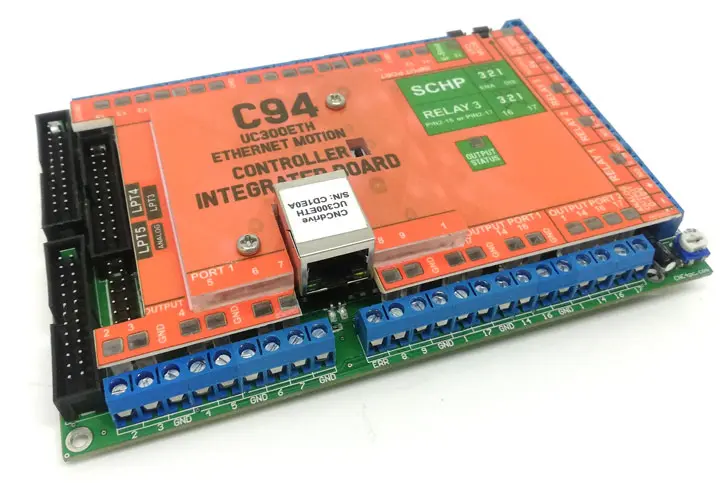

C94 - Multifunction Board

(0 review)
The C94 is a  High-Speed Motion Controller using an  Ethernet connection with   True Real-Time Functions. It supports Mach3/4 and UCCNC so it can be highly flexible.
$ 319.14 $ 319.14

Add to cart
Add to wishlist

Connect ANYTHING with Clean and Simple Connections

  • Steppers
  • VFD
  • Limits/Homes.
  • Vacuum
  • Probe
  • Coolant Pump.
  • etc...

Highly Expandable:

FEATURES

  • Connects directly to the motion controller or parallel ports
  • Built-in PWM-Based Speed Control and Two Built-in Electromechanical Relays with NO and NC positions for spindle control.
  • The system monitors:

        -  E-Stop

        -  Safety Charge Pump.

  • Electromechanical Relay with NO and NC positions for general purpose (Port_2 16 or 17, jumper-selectable).
  • Microcontroller based SCHP.
  • Optoisolated inputs working at 5-24VDC.
  • Can be powered with a voltage between +10 and +30VDC.
  • Status LEDs on all input and Output connections.
  • DIN Rail mountable.
  • Open Collector Outputs pins 1, 14, 16, 17.
  • Screw-On connections for all terminals.
  • Status LEDs for enable.
