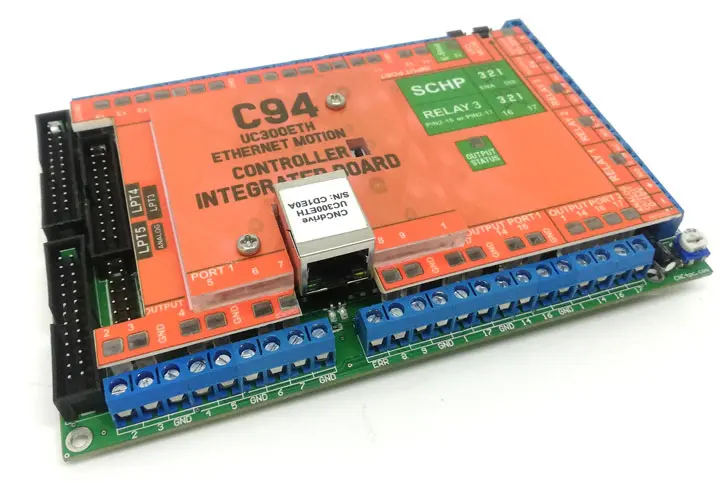

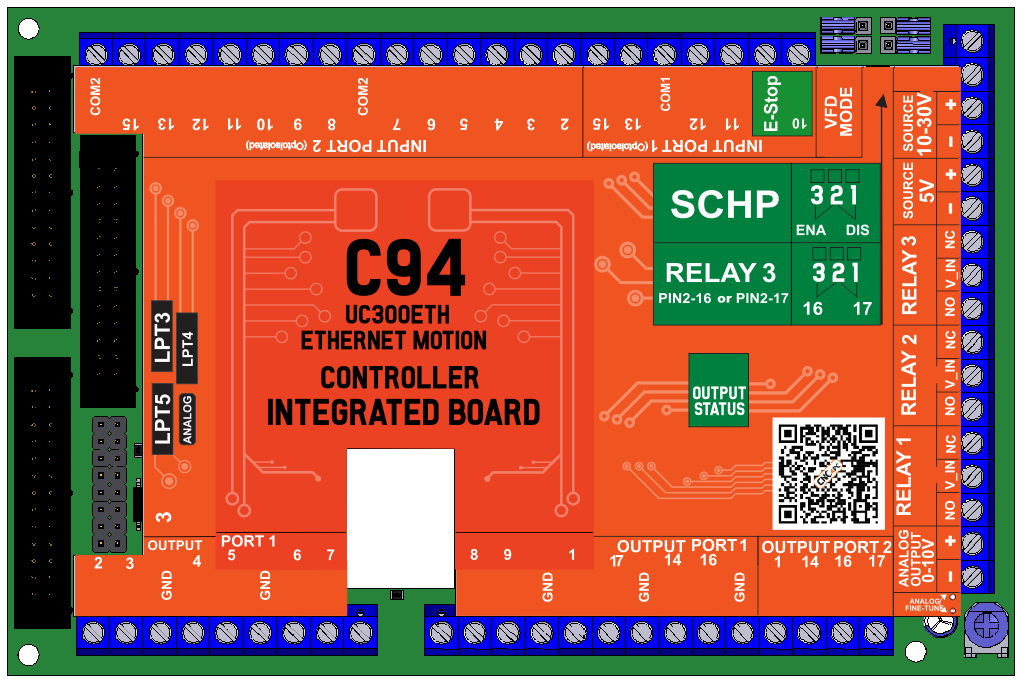

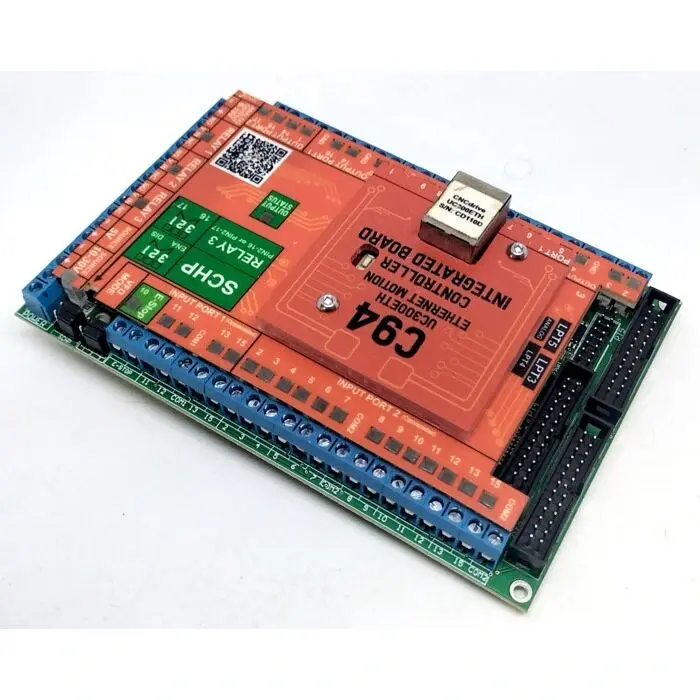

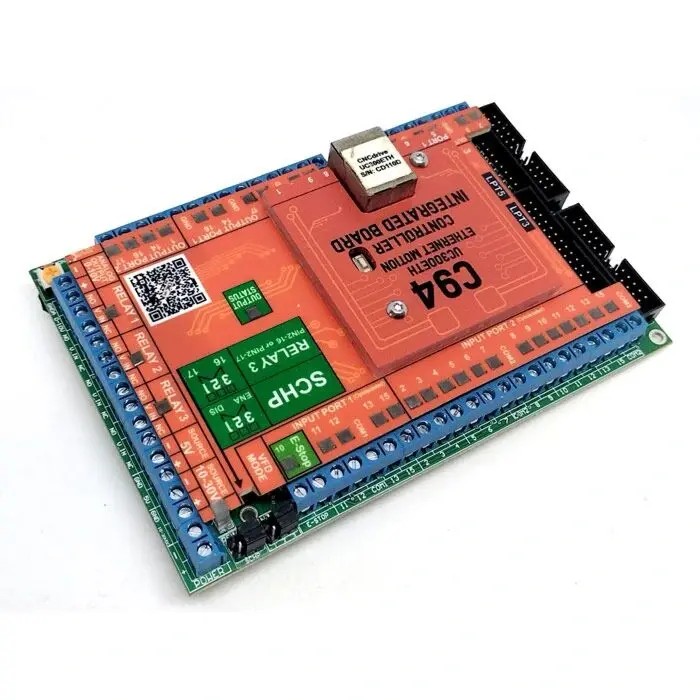

C94 - Multifunction Board

https://www.cnc4pc.com/web/image/product.template/4730/image_1920?unique=8ad4f85
The C94 is a  High-Speed Motion Controller using an  Ethernet connection with   True Real-Time Functions. It supports Mach3/4 and UCCNC so it can be highly flexible.

$ 136.00 136.0 USD $ 136.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Connect ANYTHING with Clean and Simple Connections

    • Steppers
    • VFD
    • Limits/Homes.
    • Vacuum
    • Probe
    • Coolant Pump.
    • etc...

    Highly Expandable:

    FEATURES

    • Connects directly to the motion controller or parallel ports
    • Built-in PWM-Based Speed Control and Two Built-in Electromechanical Relays with NO and NC positions for spindle control.
    • The system monitors:

            -  E-Stop

            -  Safety Charge Pump.

    • Electromechanical Relay with NO and NC positions for general purpose (Port_2 16 or 17, jumper-selectable).
    • Microcontroller based SCHP.
    • Optoisolated inputs working at 5-24VDC.
    • Can be powered with a voltage between +10 and +30VDC.
    • Status LEDs on all input and Output connections.

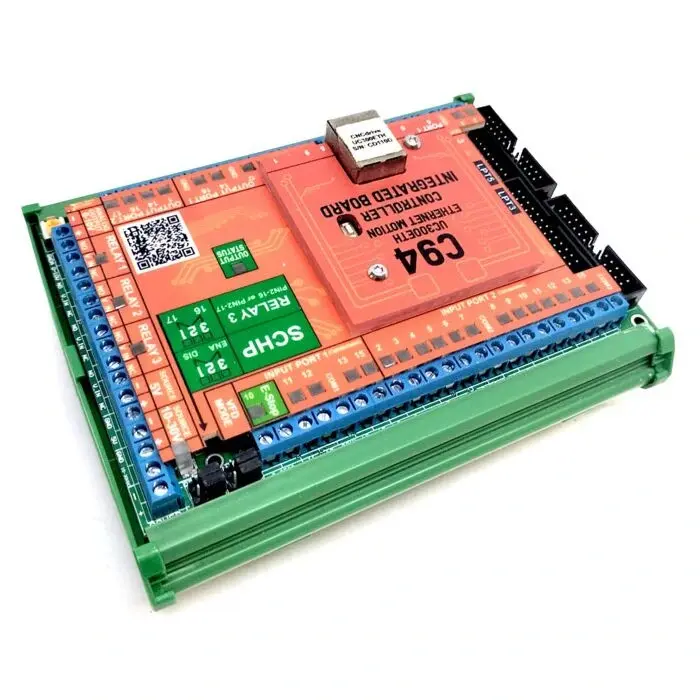

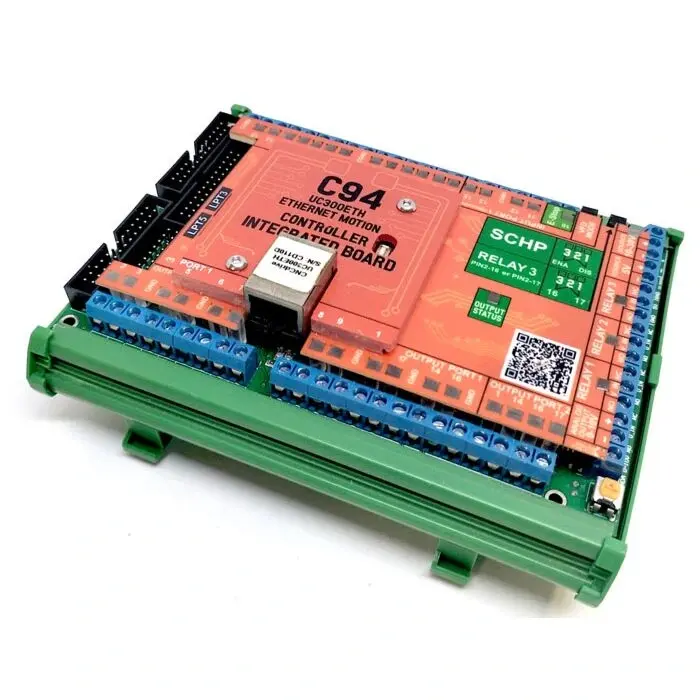

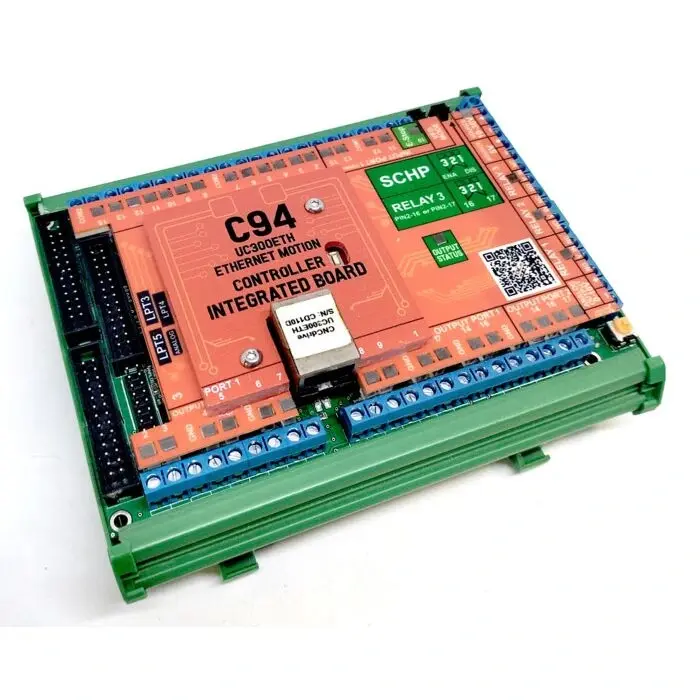

    • DIN Rail mountable.
    • Open Collector Outputs pins 1, 14, 16, 17.
    • Screw-On connections for all terminals.
    • Status LEDs for enable.
