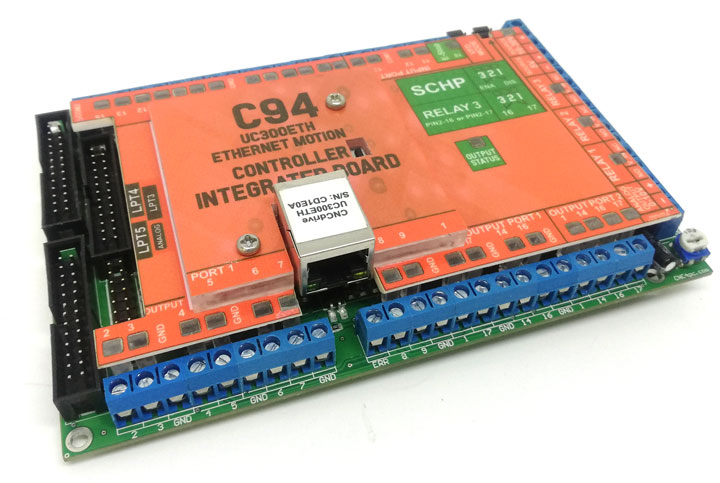

C94 - Multifunction Board

(0 review)

The C94 UC300ETH Multifunction CNC Control Board is an integrated CNC control solution built around the UC300ETH Ethernet Motion Controller. Designed for Mach3, Mach4, and UCCNC, it provides high-speed Ethernet motion control together with a comprehensive interface for connecting CNC machine components.

The C94 provides convenient connections for stepper and servo drives, VFDs, spindle systems, limits, home switches, probes, coolant pumps, and other CNC accessories. It also includes PWM-based spindle speed control, two electromechanical relays, analog inputs and outputs, optoisolated 5–24 VDC inputs, E-Stop monitoring, and Safety Charge Pump functionality.

UC300ETH Motion Controller Not Included.


$ 146.88 $ 146.88

Add to cart
Add to wishlist
Documents
User's Manual C94 Rev.2 C94_Rev.2.zip

Connect ANYTHING with Clean and Simple Connections

  • Steppers
  • VFD
  • Limits/Homes.
  • Vacuum
  • Probe
  • Coolant Pump.
  • etc...

Highly Expandable:

FEATURES

  • Connects directly to the motion controller or parallel ports
  • Built-in PWM-Based Speed Control and Two Built-in Electromechanical Relays with NO and NC positions for spindle control.
  • The system monitors:

        -  E-Stop

        -  Safety Charge Pump.

  • Electromechanical Relay with NO and NC positions for general purpose (Port_2 16 or 17, jumper-selectable).
  • Microcontroller based SCHP.
  • Optoisolated inputs working at 5-24VDC.
  • Can be powered with a voltage between +10 and +30VDC.
  • Status LEDs on all input and Output connections.
  • DIN Rail mountable.
  • Open Collector Outputs pins 1, 14, 16, 17.
  • Screw-On connections for all terminals.
  • Status LEDs for enable.
