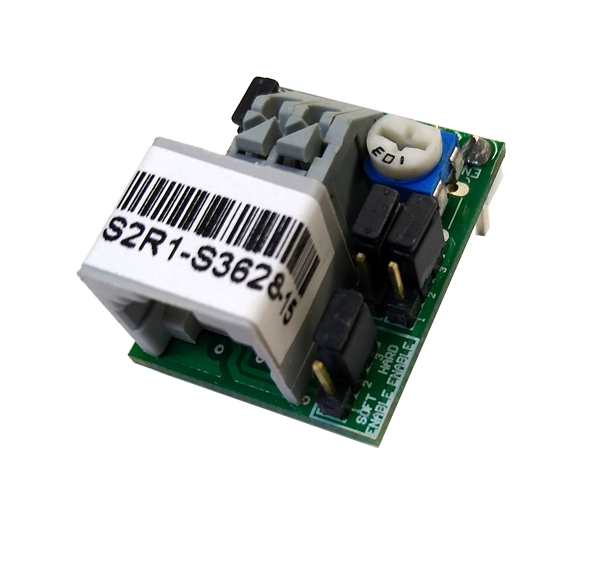

This board interface is used for the connection between
C82,
C76,
C86MASSO,
C86ACORN,
C35S and Closed
Loop Steppers DRIVE.
2.0
FEATURES
• RJ45 Driver Input Connector
• Select Jumper for Hard Enable or Soft Enable.
• Alarm terminal
• Select jumper for signal differentials.
• Select Jumper active Low and active High
• Adjustable resistor to allow adjusting the fault sensibility
