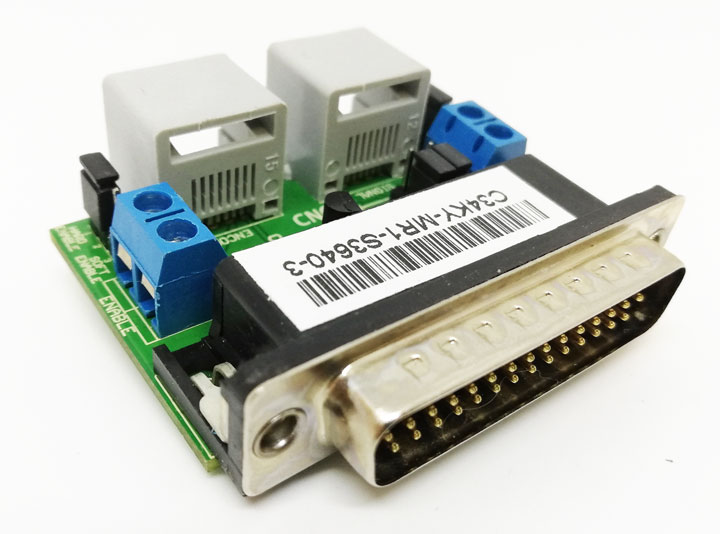

OVERVIEW
This board interface is used for the connection
betweenC82, C76, C86ACORN and C86MASSO and, YAKO Servo Driver M Series
FEATURES
- HDM44D connector for the connection of the driver.
- RJ45 Connector for Axis.
- Encoder Output.
- Select Jumper for Hard Enable or Soft Enable.
- Select Jumper alarm active Low or active High
- Select a jumper for signal differentials.
- Terminals for the external drive enable a push button.
