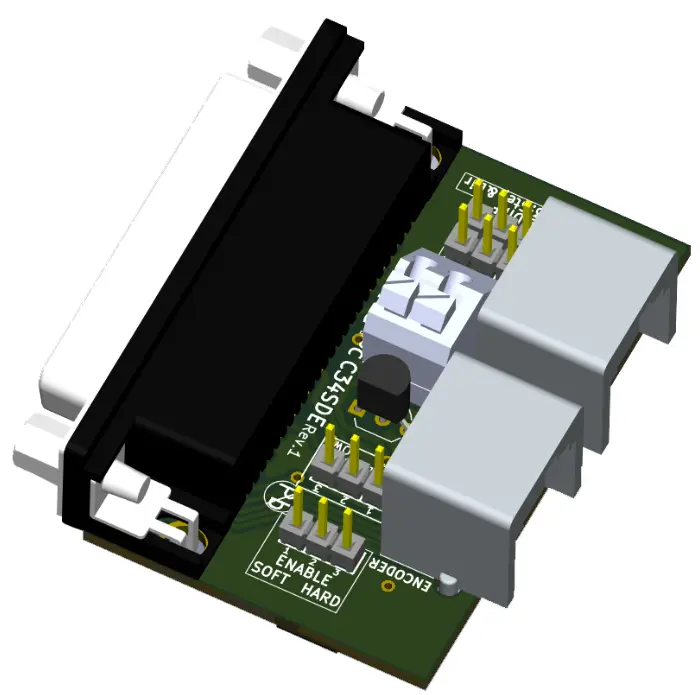

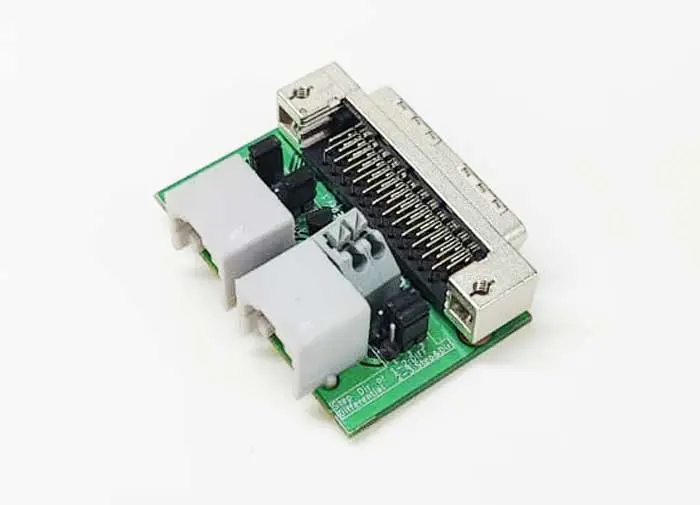

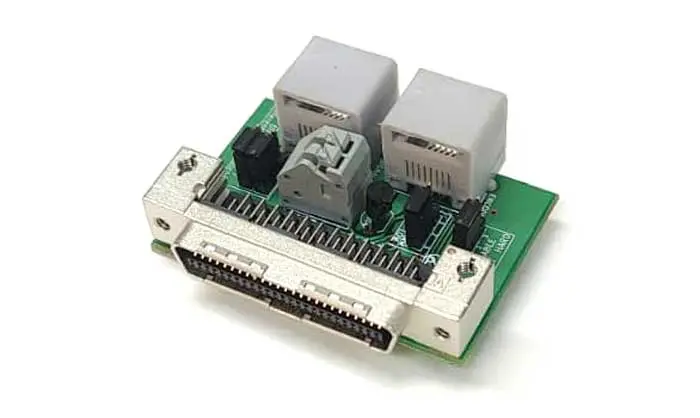

This board interface is used for the connection
between
C76,
C82,
C86ACORN,
C86MASSO,
C35S, and Shihlin SDE(-P) Series Servo Motor
Featured
- DB50 Connector for Connecting Driver.
- RJ45 Connector for
Axis.
- Encoder Output.
- Select Jumper for Hard Enable or Soft Enable.
- Alarm terminal.
- Select a jumper for
signal differentials.
- Terminals for the external
drive enable a push button.
- Select Jumper active
Low and active High.
