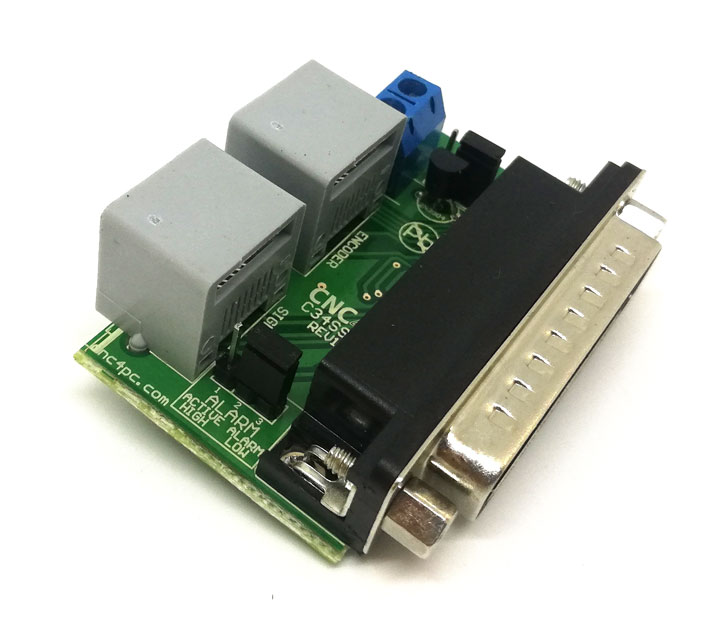

RJ45 Driver Board for Teknic Elcipse 545 SST

OVERVIEW

This board interface is used for the connection between C82, C76, C86MASSO, C86ACORN, and the SST-ECLIPSE, Model E5xx.

FEATURES

• DB25 MALE connector for Driver Connection.
• RJ45 Connector for Axis.
• Encoder Output.
• Select Jumper for Hard Enable or Soft Enable.
• Select Jumper active Low and active High
• Terminals for external drive enable push button
